Box, MOPAR Connect TELEMATIC - RHD

Courtesy of CHRYSLER GROUP, LLC

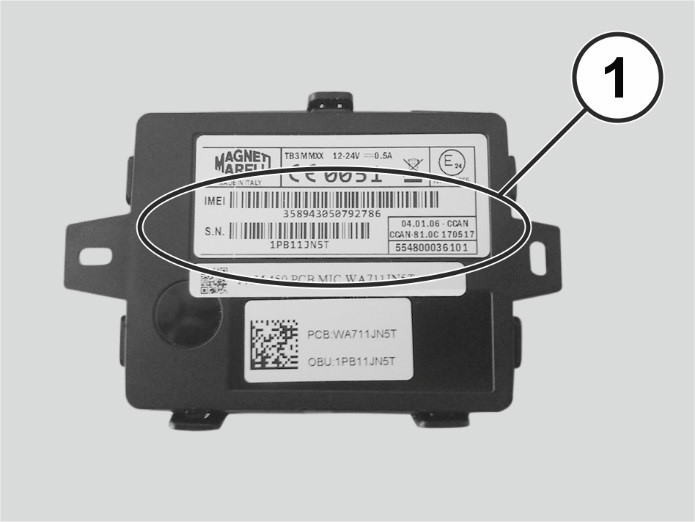

Before installation, make a note of the data on the label (1) on the control module. This data will be needed for the test procedure at the end of the installation.

Courtesy of CHRYSLER GROUP, LLC
Apply a strip of bi-adhesive Velcro (1) to the back of the T-Box module.

Courtesy of CHRYSLER GROUP, LLC

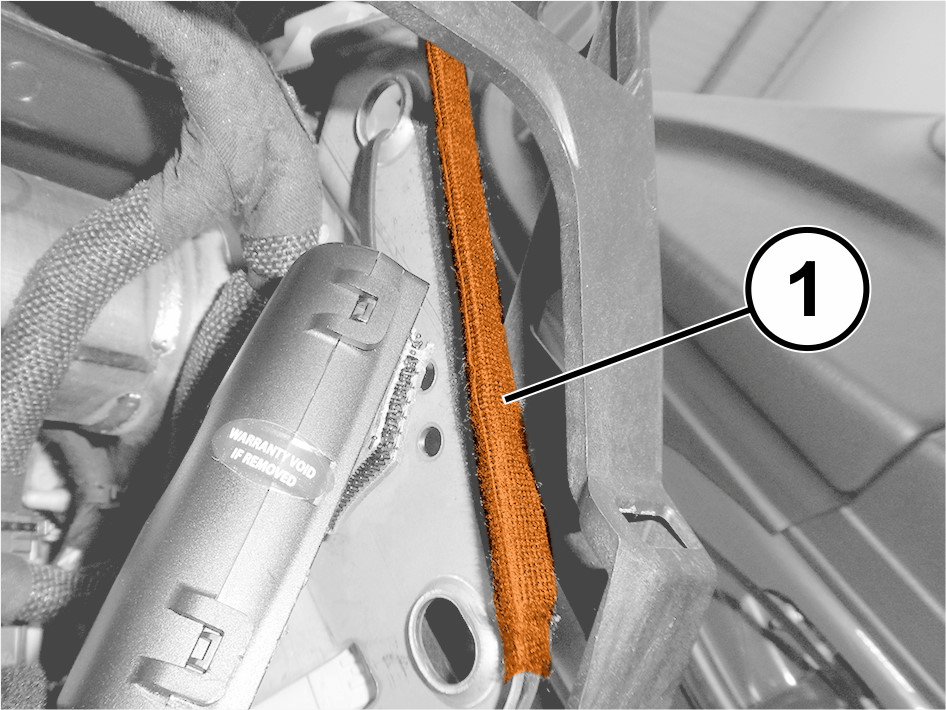

Apply the Coroplast covering tape (1) to the parts of the T-Box module in contact with the vehicle to prevent vibration noise when it is mounted on the vehicle.
NOTE:
Left side gap hider shown, right side similar.

Courtesy of CHRYSLER GROUP, LLC

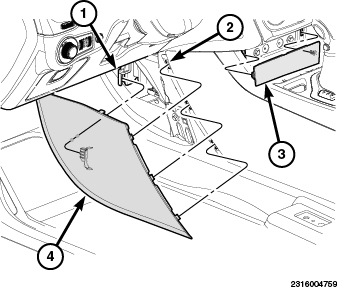

From the front of the floor console and using a trim stick, disengage the retaining tabs (2) for the front gap hider and remove the right side gap hider (4).

Courtesy of CHRYSLER GROUP, LLC

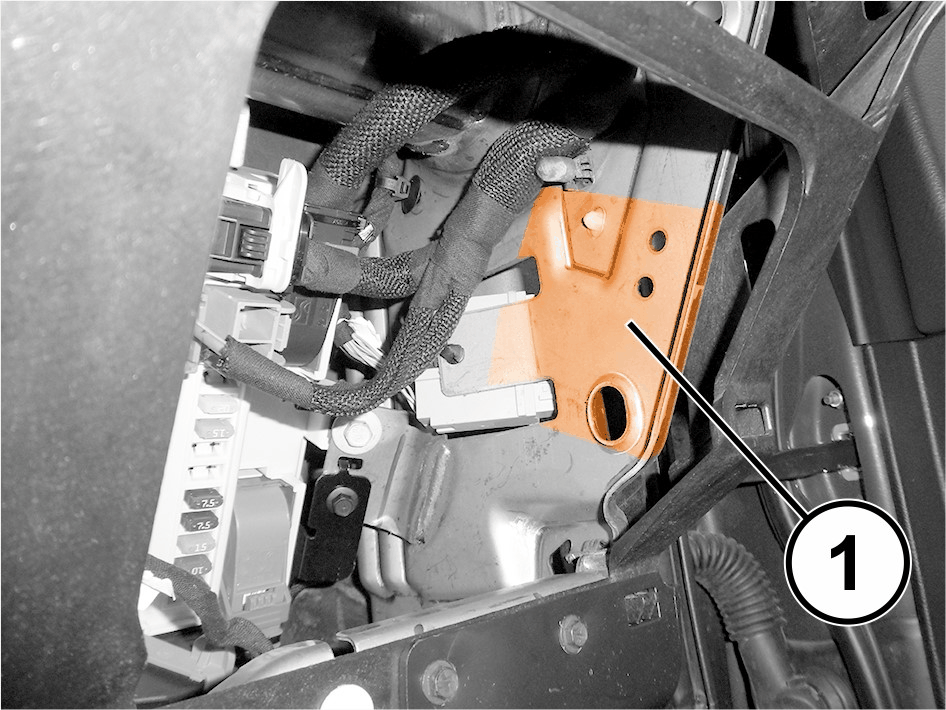

Using isopropyl alcohol or heptane, clean the contact surface of the bracket (1) on which the T-box will be fitted.

Courtesy of CHRYSLER GROUP, LLC

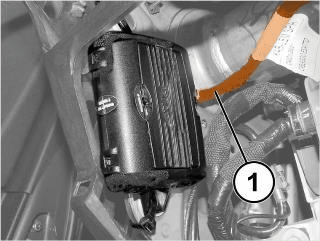

Apply a strip of Coroplast tape approximately 10 cm (4 in.) long to the clean surface (1). Cover the sharp edge of the bracket to protect the T-box.

Courtesy of CHRYSLER GROUP, LLC

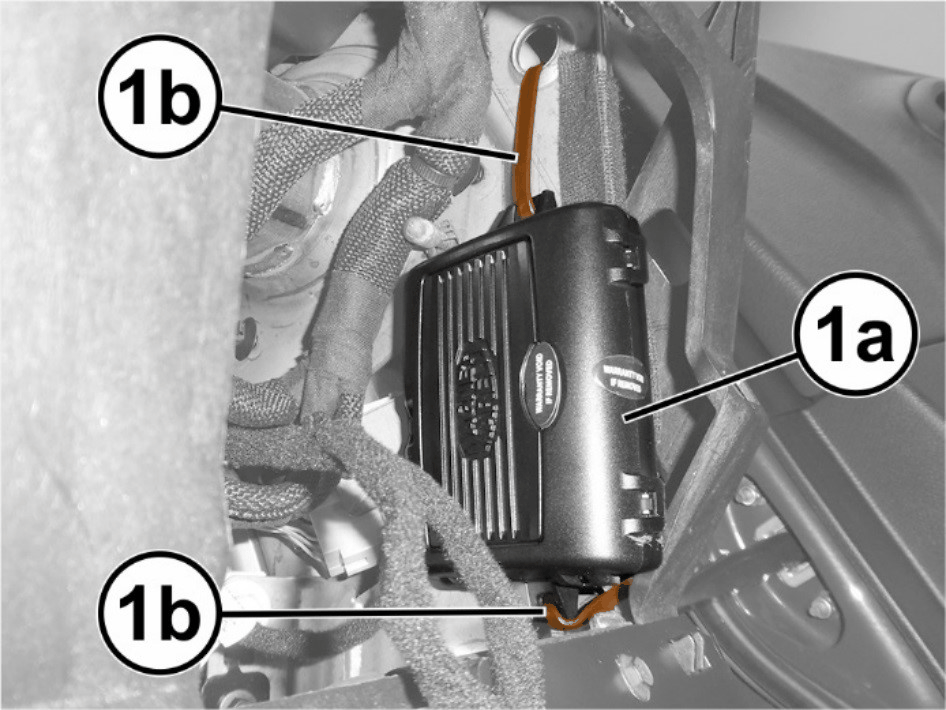

Position the T-box (1a) on the bracket with the connector socket facing towards the front of the vehicle. Secure it with double-sided adhesive tape and two cable ties (1b).

Courtesy of CHRYSLER GROUP, LLC
Connect the wire harness connector (1) to the T-box.
Install the steering column opening. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
On completion of installation of the T-Box module, connect the scan tool to the EOBD socket, locate the BCM module and check for errors.
