Vented Seats

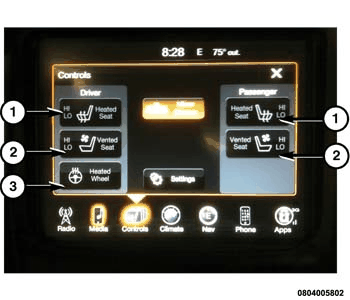

The vented seat system is designed to enhance the thermal comfort of the driver and front seat occupant, when desired. Occupant comfort is achieved by pulling air from the outside of the seating surfaces into the seat back and cushion of the seat. A vehicle with vented seats can be identified by the vented seat icons (2) located in the radio screen under Controls. Each vented seat icon illuminates when the vented seat system is ON.
The vented seat system consist of the following major components:
- Vented Seat Pads - for additional information. Refer to PAD, VENTED SEAT, DESCRIPTION .
- Vented Seat Icons in the Radio - for additional information. Refer to SWITCH, VENTED SEAT, DESCRIPTION .
- Vented Seat Motors - for additional information. Refer to MOTOR, VENTED SEAT, DESCRIPTION .
- Custom Seat and Wheel Module - for additional information. Refer to MODULE, COMFORT SEAT AND WHEEL (CSWM), DESCRIPTION .
