Connector, Star Diagnostic: Description

Star connectors provide a simple method of diagnosing Controller Area Network bus communication faults through the use of connection points for all modules on the bus. The connectors can be used to eliminate a module or group of modules in order to diagnose issues with the CAN bus circuits and connectors to the modules or the modules themselves.

Courtesy of CHRYSLER GROUP, LLC

There are two locations for the STAR diagnostic connectors on this vehicle:

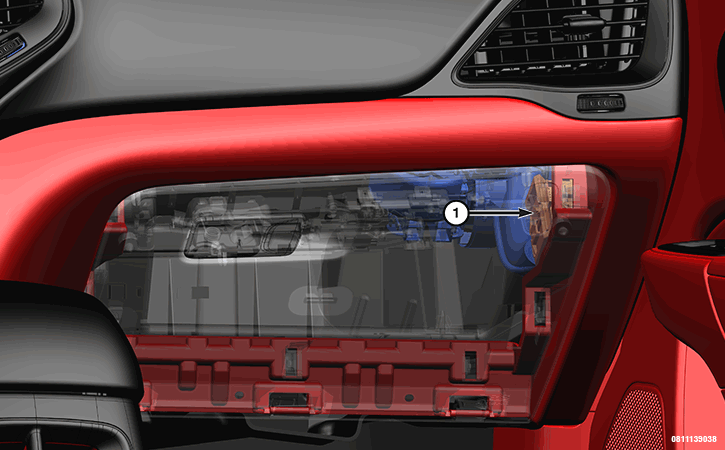

• The location of instrument panel STAR connectors (1) are behind the glove box on the passenger side. These connectors slide right to left in order to remove from the mounting bracket.

  Courtesy of CHRYSLER GROUP, LLC

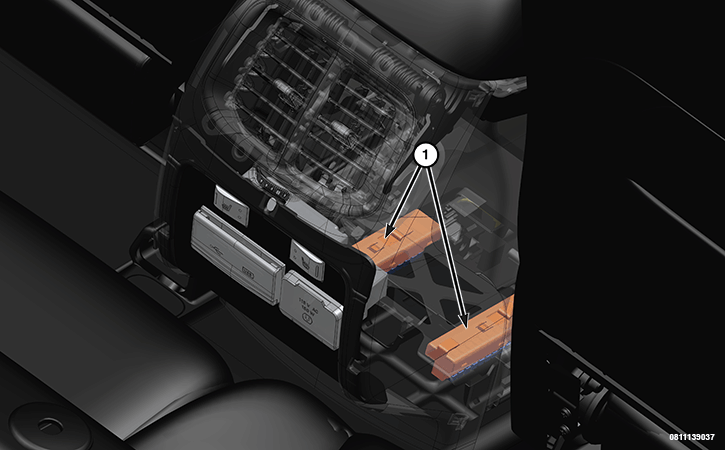

• The location of body STAR connectors (1) are under the center console. The rear potion of the console is removed to access the connectors. These connectors are mounted to a bracket underneath the console. They are removed from the bracket by pulling rearward.
