Damper, Vibration: Installation

WARNING: This page is about a different variant/trim than selected.

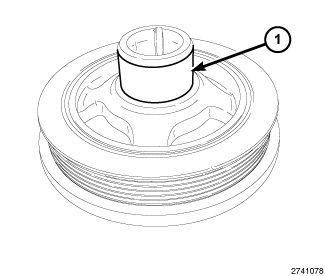

GC0144230Courtesy of CHRYSLER GROUP, LLC
  1. Apply a light coating of engine oil to the front crankshaft seal surface (1).

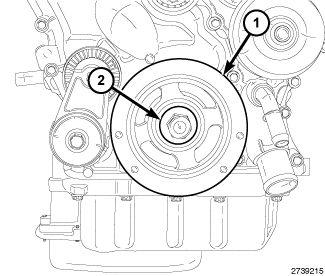

    GC0144222Courtesy of CHRYSLER GROUP, LLC
  2. Align the crankshaft vibration damper (1) to the flywheel key on the crankshaft and install the damper. Seat the damper on the crankshaft sprocket.
  3. Install and hand tighten the crankshaft vibration damper bolt (2).

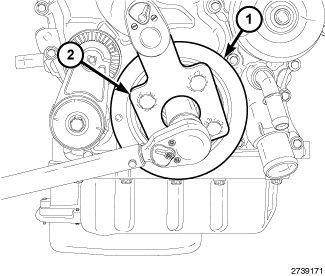

    GC0144221Courtesy of CHRYSLER GROUP, LLC
  4. Hold the crankshaft vibration damper (1) with Vibration Damper Holder (special tool #10198, Holder, Vibration Damper) (2) and tighten the crankshaft vibration damper bolt to the proper

    Refer to (TORQUE SPECIFICATIONS ).

  5. Perform the necessary steps to install the serpentine belt around all of the pulleys. Refer to 3.2L .
