Amplifier (Amp): Installation: Microphone

Courtesy of CHRYSLER GROUP, LLC

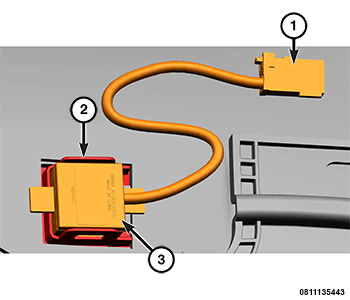

1. Install the microphone (3) into the bezel and fully engage the bezel latches (2) with the microphone lock tabs.
2. Connect the headliner wire harness connector (1) to the microphone (3).
3. Install the headliner. Refer to HEADLINER, INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
