Removal And Installation: Removal

  1. Remove the thermostat. Refer to THERMOSTAT, REMOVAL  .

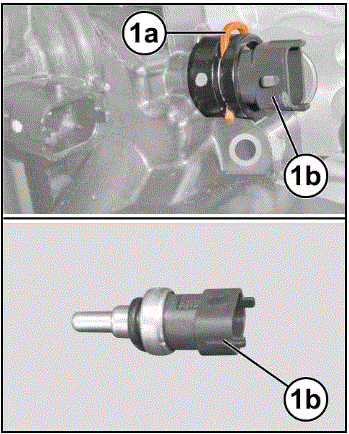

    G00588868Courtesy of CHRYSLER GROUP, LLC
  2. Retract the clip (1a) and remove the engine coolant temperature sensor (1b).
