Removal And Installation: Installation

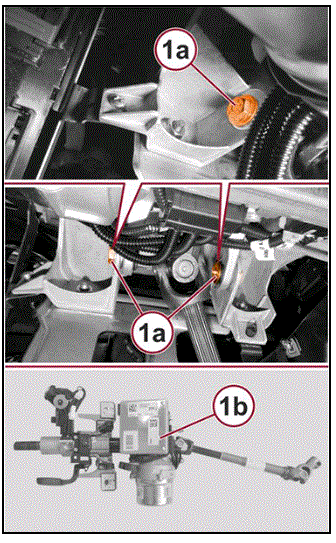

G00588844Courtesy of CHRYSLER GROUP, LLC
  1. Position the steering column (1b) to the vehicle. Install the steering column to dash frame bolts (1a) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

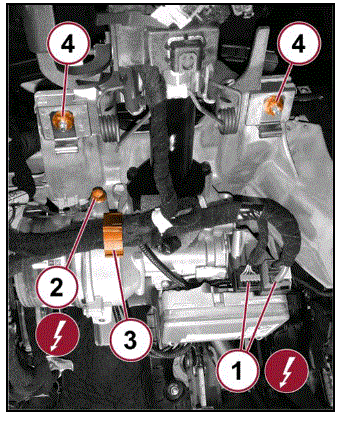

    G00588843Courtesy of CHRYSLER GROUP, LLC
  2. Install the steering column to dash frame nuts (4) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the EPS wire harness connectors (1).
  4. Install and tighten the ground cable bolt (2).

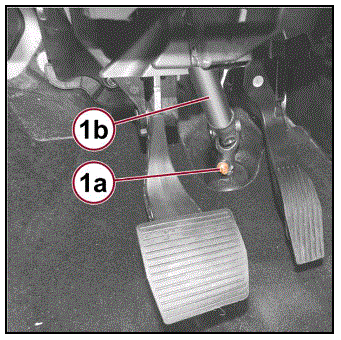

    G00588842Courtesy of CHRYSLER GROUP, LLC
  5. Install the intermediate shaft (1b) to the steering gear.
  6. Install a NEW  intermediate shaft pinch bolt (1a) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  7. Install the driver knee airbag. Refer to AIR BAG, KNEE BLOCKER, INSTALLATION .
  8. Install the sentry key antenna. Refer to ANTENNA, SENTRY KEY, INSTALLATION .
  9. Install the Steering Column Control Module (SCCM). Refer to MODULE, STEERING COLUMN CONTROL (SCCM), INSTALLATION .
  10. Install the steering wheel. Refer to WHEEL, STEERING, INSTALLATION  .
  11. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
