Exhaust Temperature Sensor 1/1: Installation

Courtesy of CHRYSLER GROUP, LLC

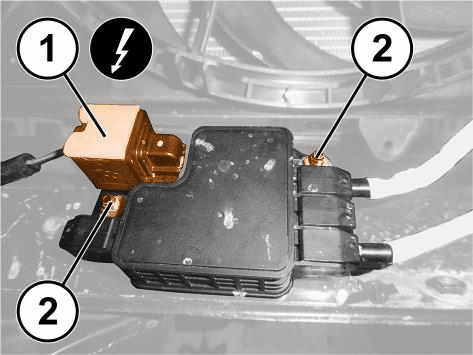

1. Position the Exhaust Gas Temperature (EGT) sensor module complete with EGT sensors and secure it to the mounting bracket using the nuts (2).

   Courtesy of CHRYSLER GROUP, LLC

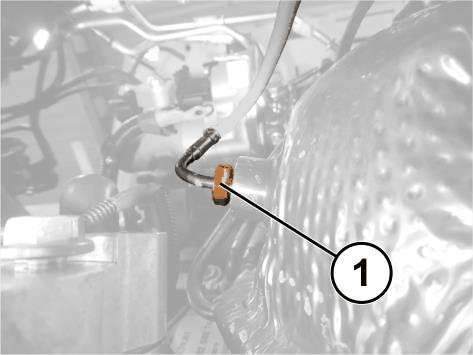

2. Install the upstream EGT sensor in the catalytic converter and tighten the connector (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

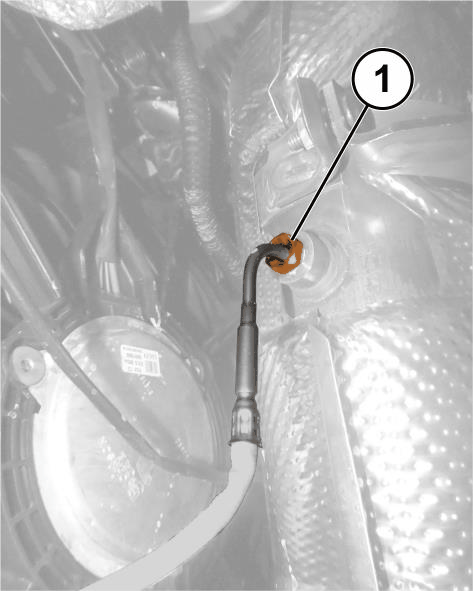

3. Install the EGT sensor downstream of the catalytic converter and tighten the connector (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

4. Connect the EGT sensor module wire harness connector (1).
5. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
6. Remove the support and lower the vehicle.
7. Connect the negative battery cable.
