80, 000KM Service (Diesel)
- Check tire conditions / wear and adjust pressure, check expiration date on the Tire Service Kit charge (if any).
- Check lighting system operation (headlights, turn signals, rechargeable flashlight, passenger compartment, glove box, instrument panel warning lights, etc.).
- Check and restore fluid levels (engine coolant, brake / hydraulic clutch, windshield washer, battery, etc.).
- Check emissions / exhaust gas. Refer to the appropriate service information .
- Check engine control system operation and engine oil degradation (via scan tool).
- Check cleanness of locks, hood and trunk lever cleanness and lubrication.
- Visually check condition and pad wear of the front disc brakes and operation.
- Visually check condition and pad wear of the rear disc brakes and operation.
- Visually check conditions / belt and accessory drive (versions without automatic tensioner).
- Replacing oil and oil filter is indicated by light or message on the instrument panel depending on the use of the car. Must not exceed 2 years.
- If the vehicle is used mainly on urban routes you need to replace the engine oil and filter every year.
- To replace oil and oil filter. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION, 1.3L or FILTER, ENGINE OIL, REMOVAL AND INSTALLATION, 2.4L .
- If refueling the vehicle with fuel of inferior quality to the European specification provided it is recommended to replace the fuel filter cartridge, operating as described below. Refer to the appropriate service information .
- Position the fuel filter in vise with protective jaws.NOTE:
To avoid compromising the functionality of the new filter element, it is recommended to protect hands with suitable gloves when opening the protective and all stages of assembly.

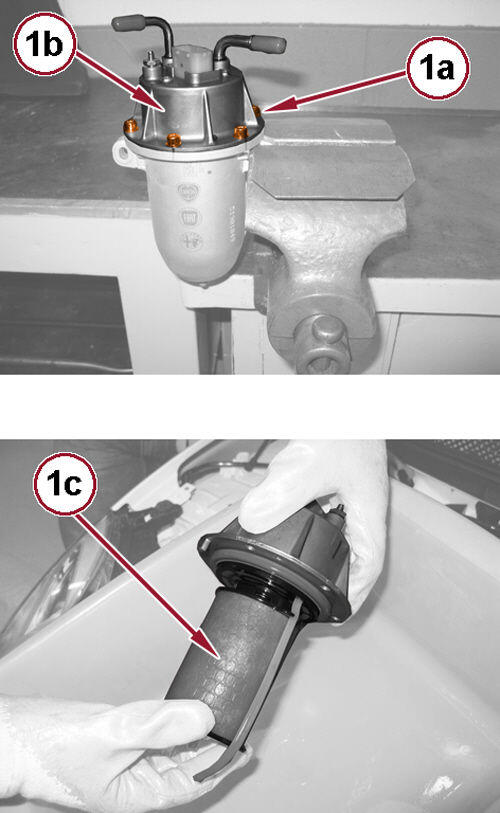

- Remove the screws (1a), remove the cover (1b) complete with filter element (1c) and place in a suitable container.

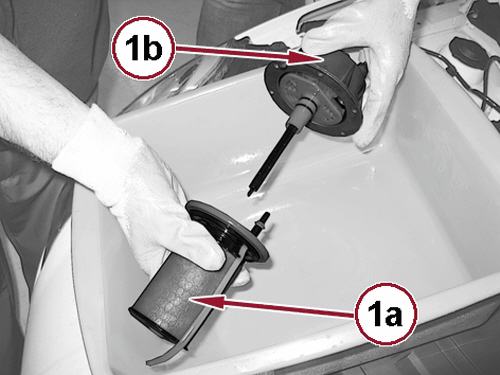

- Remove the filter element (1a) from the cover (1b).

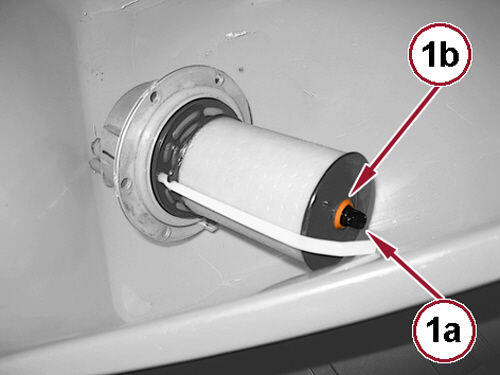

- Check the correct position of the water presence sensor (1a) and seal ring (1b).

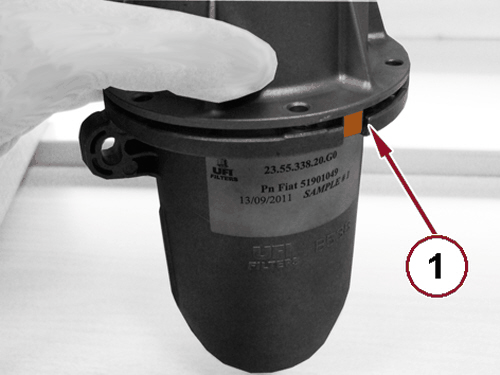

- Place the complete cover of filter element, taking care to engage the tooth (1) with the groove of the support.
- Tighten the mounting screws on cover of fuel filter.
- Remove the fuel filter from the vise. Refer to the appropriate service information .
- If the vehicle is used in dusty conditions replace the engine air filter. Refer to AIR CLEANER, REMOVAL AND INSTALLATION, 1.3L or AIR CLEANER, REMOVAL AND INSTALLATION, 2.4L .
