Removal And Installation: Installation

Remove and discard the old O-ring from the fluid pressure sensor if the old fluid pressure sensor is reused.

Courtesy of CHRYSLER GROUP, LLC

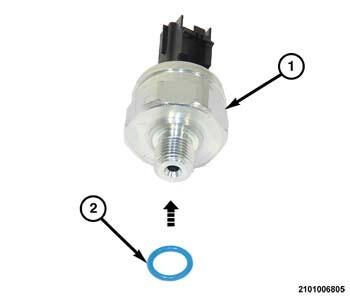

Install a NEW O-ring (2) on the fluid pressure sensor (1).

Courtesy of CHRYSLER GROUP, LLC
Thread the fluid pressure sensor (1) into the valve body.

Courtesy of CHRYSLER GROUP, LLC
Using a suitable wrench, tighten the fluid pressure sensor (1).

Courtesy of CHRYSLER GROUP, LLC
Connect the fluid pressure sensor wire harness connector (1) and make sure the wire harness connector lock (2), locks.
Install the valve body. Refer to VALVE BODY, REMOVAL AND INSTALLATION .
