Switch, Transfer Case: Removal

Courtesy of CHRYSLER GROUP, LLC

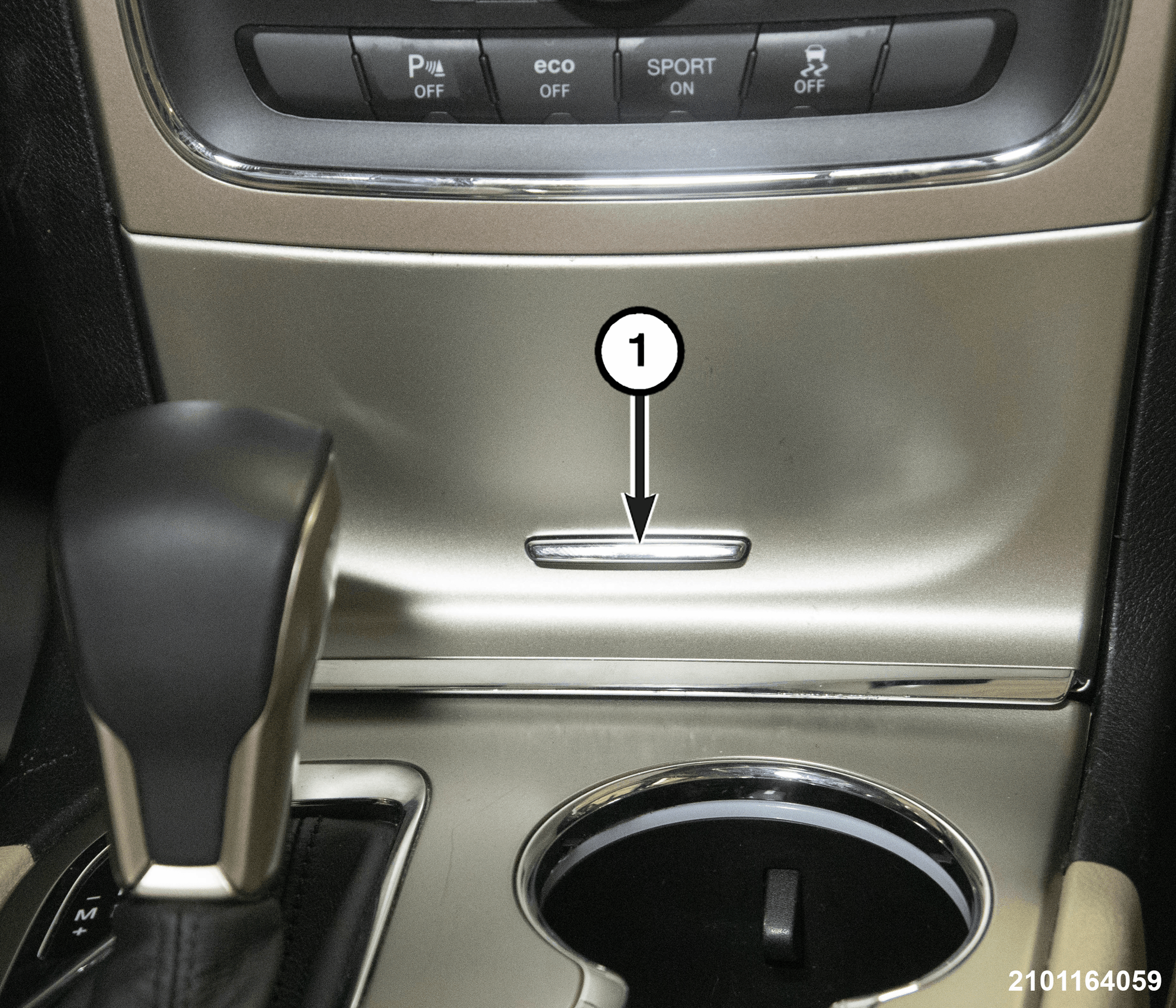

Press the button (1) and open the instrument panel bin.

Courtesy of CHRYSLER GROUP, LLC

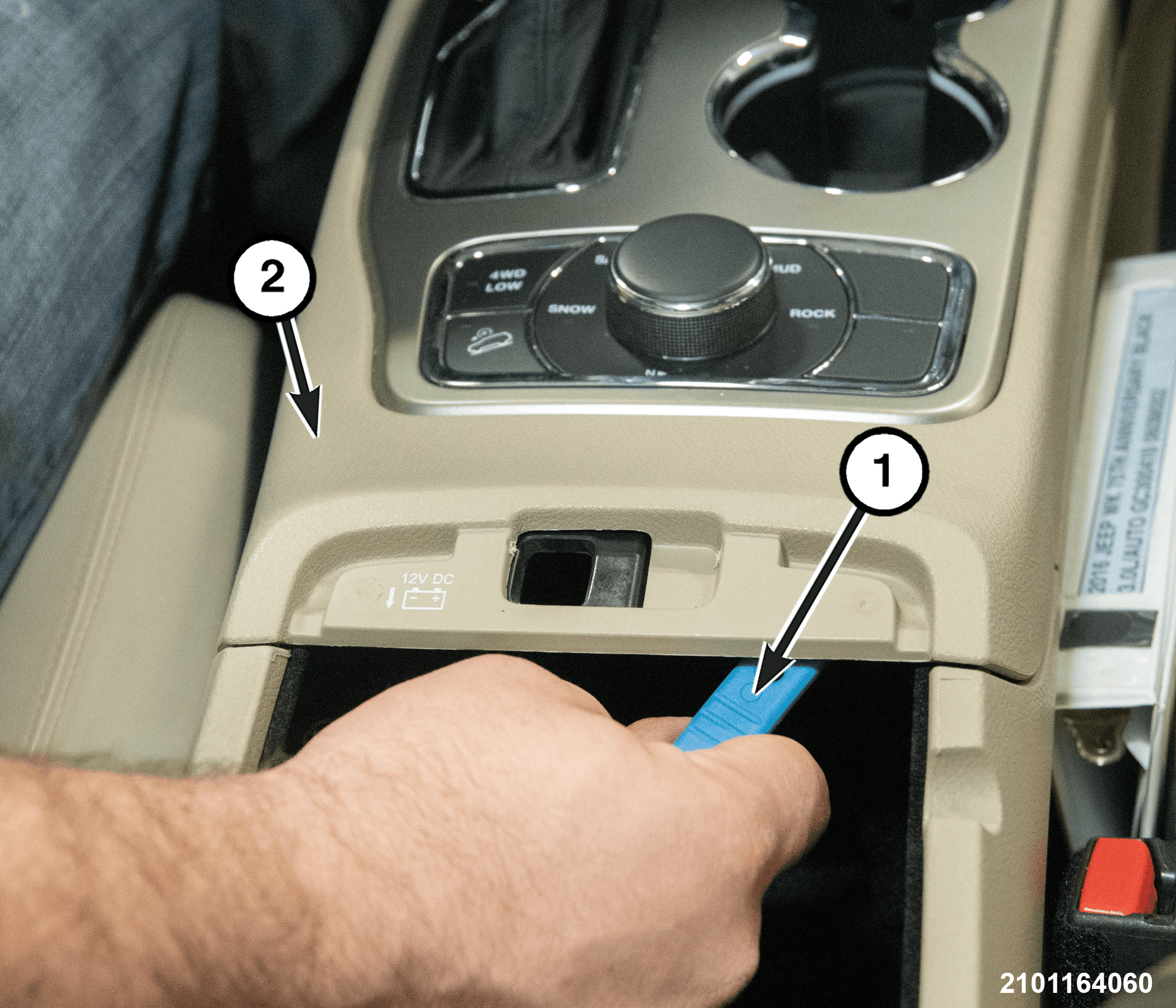

Using a trim stick (1) or equivalent, disengage the shifter bezel (2) from the center console.

Courtesy of CHRYSLER GROUP, LLC
Compress the retention tabs (1) on the transfer case switch and separate from the shifter bezel.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the transfer case switch wire harness connector (1) from the transfer case switch (2).
