Switch, Transfer Case: Description

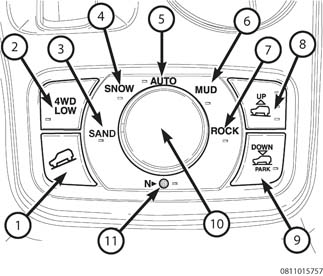

Electric shifting between 4WD Auto and 4WD Low is accomplished with a console-mounted switch. A pushpin button is used to shift to Neutral mode.
- Hill Decent Control (1).
- 4WD Low (2).
- Sand Terrain position (3).
- Snow Terrain position (4).
- Auto Terrain position (5).
- Mud Terrain position (6).
- Rock Terrain position (7).
- Air Suspension Up (8) (if equipped).
- Air Suspension Down (9) (if equipped).
- Terrain selector control knob (10).
- Neutral Position (11).
