Disassembly And Assembly

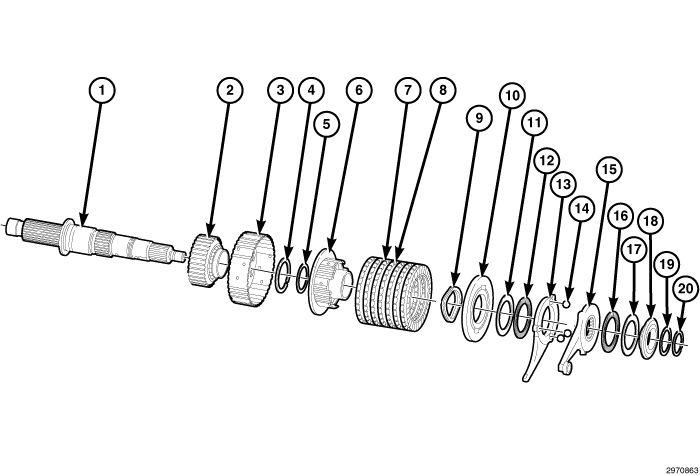

DISASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

1 - MAINSHAFT

11 - THRUST WASHER

2 - DRIVE SPROCKET

12 - THRUST BEARING

3 - CLUTCH HOUSING

13 - BALL RAMP A LEVER

4 - CLUTCH HOUSING RETAINING RING

14 - BALL

5 - SPROCKET SPACER T-WASHER

15 - LEVER B ASSEMBLY

6 - CLUTCH HUB

16 - THRUST BEARING

7 - FRICTION PLATE

17 - THRUST WASHER

8 - STEEL REACTION PLATE

18 - THRUST COLLAR

9 - CLUTCH SPRING

19 - CLUTCH SHIM

10 - CLUTCH PISTON

20 - RETAINING RING

NOTE:

If the transfer case assembly is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the Quick Learn Procedure using the Scan Tool.

Courtesy of CHRYSLER GROUP, LLC

Remove the clutch upper snap ring.

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch shim.

Courtesy of CHRYSLER GROUP, LLC
Remove the thrust collar.

Courtesy of CHRYSLER GROUP, LLC
Remove the upper thrust bearing race.

Courtesy of CHRYSLER GROUP, LLC
Remove the upper thrust bearing.

Courtesy of CHRYSLER GROUP, LLC
Remove the upper shift lever.

Courtesy of CHRYSLER GROUP, LLC
Remove the shift lever balls.

Courtesy of CHRYSLER GROUP, LLC
Remove the lower shift lever.

Courtesy of CHRYSLER GROUP, LLC
Remove the lower thrust bearing.

Courtesy of CHRYSLER GROUP, LLC
Remove the lower bearing race.

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch apply piston.
NOTE:
For ease of installation note the assembly orientation of the 4 identical springs.

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch return springs.
NOTE:
For ease of installation note the assembly configuration of the clutch plates and friction discs.

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch pack.

Courtesy of CHRYSLER GROUP, LLC

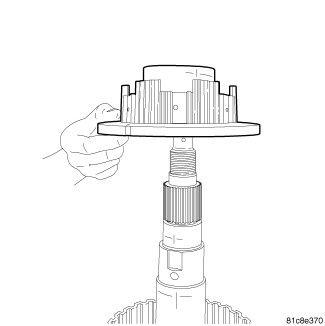

Remove the inner clutch hub.

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch hub thrust washer (1) and snap ring (2).

Courtesy of CHRYSLER GROUP, LLC

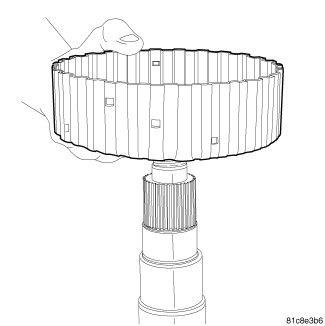

Remove the outer clutch drum from the main shaft and drive sprocket.

ASSEMBLY

NOTE:

If the transfer case assembly is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the Quick Learn Procedure using the Scan Tool.

Courtesy of CHRYSLER GROUP, LLC

Install the outer clutch drum onto the main shaft and drive sprocket.

Courtesy of CHRYSLER GROUP, LLC
Install the clutch hub snap ring (2) and thrust washer (1).

Courtesy of CHRYSLER GROUP, LLC
Install the inner clutch hub.

Courtesy of CHRYSLER GROUP, LLC
Starting with friction disc and ending with a friction disc, install the clutch pack.
NOTE:
The four identical springs must be installed in the orientation shown.

Courtesy of CHRYSLER GROUP, LLC
Install the clutch return springs.

Courtesy of CHRYSLER GROUP, LLC
Install the clutch apply piston with the lettering up and the stepped face down.

Courtesy of CHRYSLER GROUP, LLC
Install the lower thrust bearing race.

Courtesy of CHRYSLER GROUP, LLC
Install the lower thrust bearing.

Courtesy of CHRYSLER GROUP, LLC
Install the lower shift lever.

Courtesy of CHRYSLER GROUP, LLC
Install the shift lever balls into their pockets.

Courtesy of CHRYSLER GROUP, LLC
Install the upper shift lever.

Courtesy of CHRYSLER GROUP, LLC
Install the upper thrust bearing.

Courtesy of CHRYSLER GROUP, LLC
Install the upper thrust bearing race.

Courtesy of CHRYSLER GROUP, LLC
Install the thrust collar.

Courtesy of CHRYSLER GROUP, LLC
Install the clutch shim.

Courtesy of CHRYSLER GROUP, LLC
Install the clutch upper snap ring.
