Cover, Engine: Installation
WARNING: This page is about a different variant/trim than selected.
- Locate the engine cover.

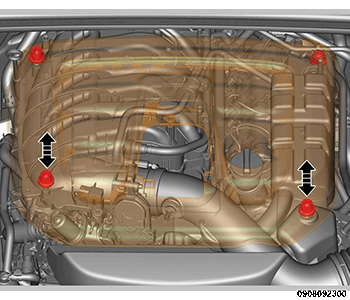

- Using your hands, gently push down until you feel the grommet and ball stud engage, ensuring grommet and ball stud retention.
- Using your hands, lightly lift up around the edges of the engine cover to ensure that the cover is not loose and that all of the grommets are engaged.

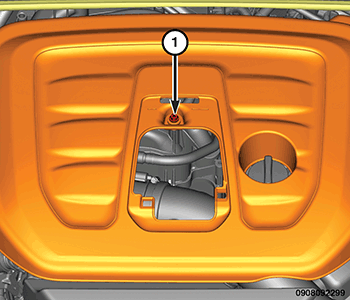

- Install and securely tighten the engine cover fastener (1).

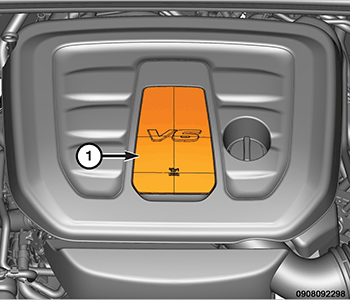

- Install the oil filter access cover (1).
