Positive Battery

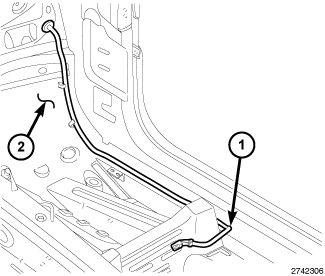

GC0146912Courtesy of CHRYSLER GROUP, LLC
  1. Install the positive battery (1) cable into the vehicle (2).

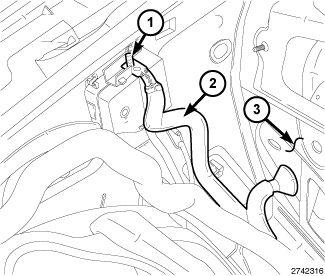

    GC0146444Courtesy of CHRYSLER GROUP, LLC
  2. Push the positive battery cable (2) through the dash panel (3).
  3. Install the retainer (1) from the positive battery cable junction block.

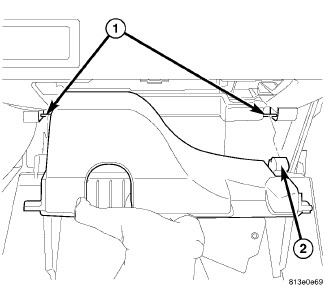

    GC0119187Courtesy of CHRYSLER GROUP, LLC
  4. Install the glovebox liner.
  5. Install the glovebox. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
    GC0145626Courtesy of CHRYSLER GROUP, LLC
  6. Install the passenger side cowl trim panel. Refer to PANEL, COWL TRIM, SIDE, INSTALLATION .
  7. Install the nut that secures the passenger side cowl trim panel to the mounting bracket.
  8. Install the passenger side hush panel from underneath the instrument panel.

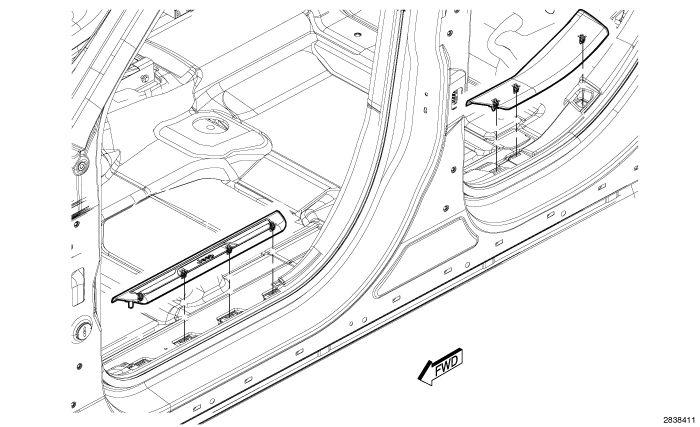

    GC0146100Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Driver's side shown, passenger side similar.

  9. Install the passenger side scuff plate. Refer to PLATE, SCUFF, LIFTGATE, INSTALLATION .

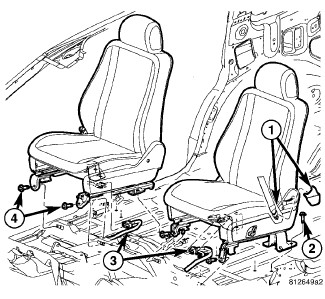

    GC0119266Courtesy of CHRYSLER GROUP, LLC
  10. Install the front passenger seat. Refer to SEAT, FRONT, INSTALLATION .
    GC0145460Courtesy of CHRYSLER GROUP, LLC
  11. Connect the positive battery cable.
  12. Install the battery cover (1).
  13. Connect the negative and positive battery cable.
