Stabilizer Bar, Front: Installation

NOTE:

Ensure that the stabilizer link nuts are equipped with an encapsulated washer nut assembly upon installation.

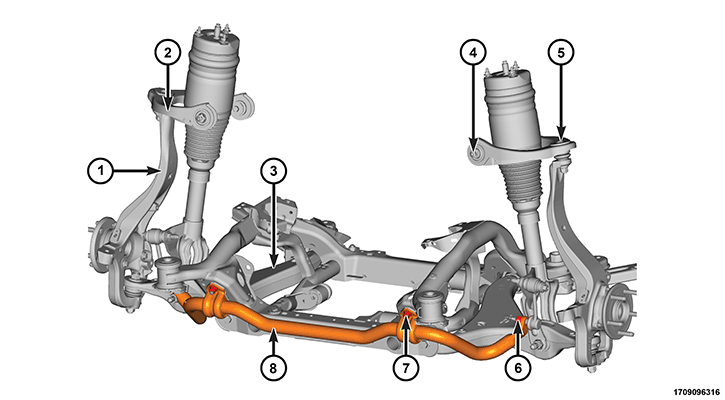

GC0173638Courtesy of CHRYSLER GROUP, LLC
  1. Position the stabilizer bar (8) to the vehicle.
  2. Install the stabilizer bushing clamps and tighten the two bolts on each side to 122 N.m (90 ft. lbs.).

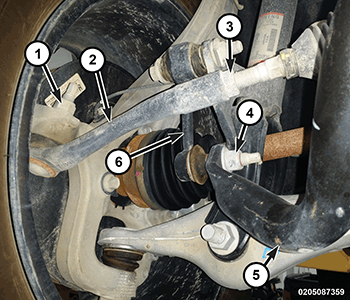

    GC0173569Courtesy of CHRYSLER GROUP, LLC
  3. Position the stabilizer link (6) to the stabilizer bar (5), install a NEW  stabilizer bar link lower nut (4) and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  4. Install the front skid plate. Refer to PLATE, SKID, FRONT, INSTALLATION .
  5. Remove the supports and lower the vehicle.
