Mid-Range Radar - Front

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

NOTE:

Mid-Range Radar Front Right (MRRFR) side shown, Mid-Range Radar Front Left (MRRFR) similar.

Remove the appropriate front wheelhouse splash shield. Refer to SHIELD, REMOVAL AND INSTALLATION .

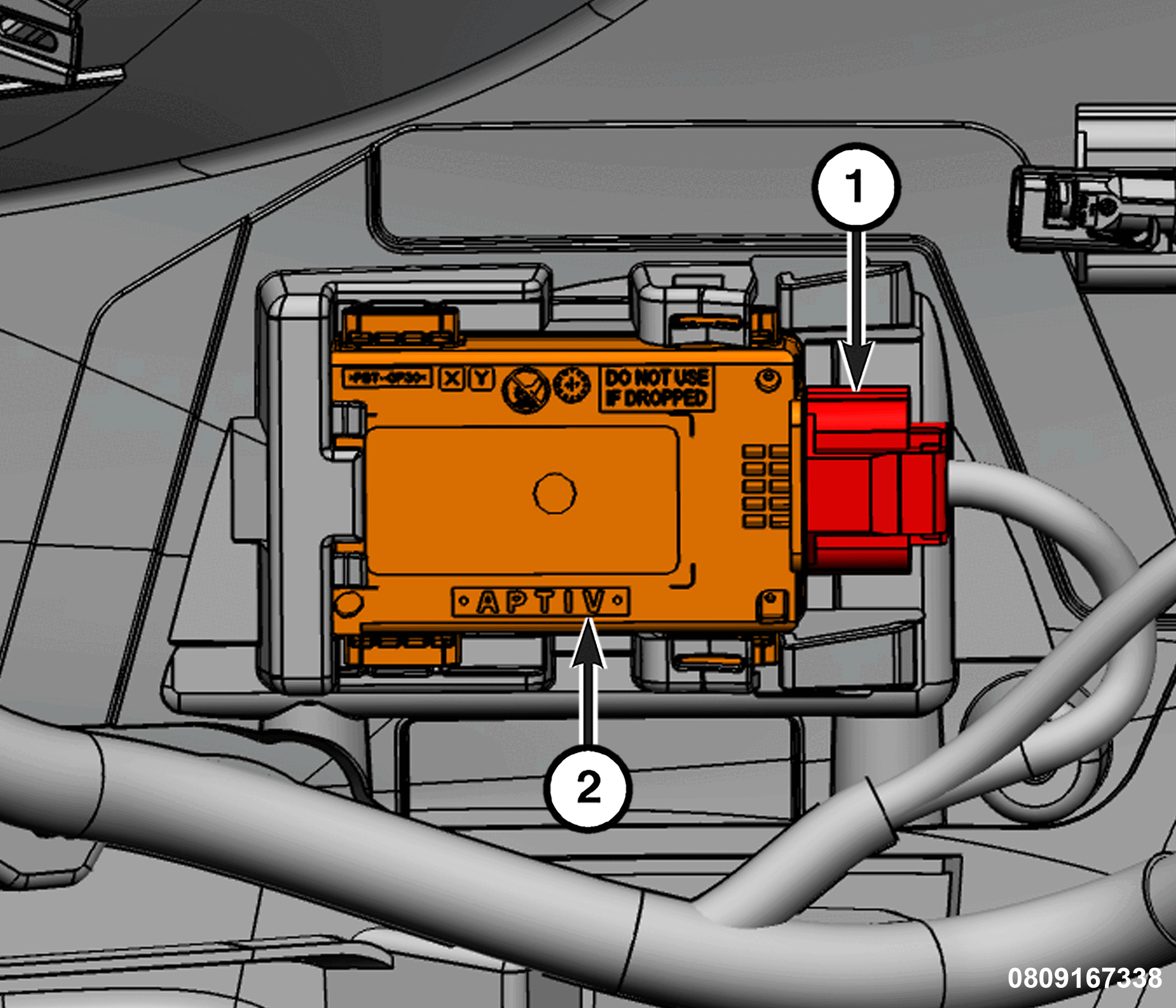

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connector

2 - Mid-Range Radar Front Module
Disconnect the wire harness connector from the mid-range radar front module.
Slide the mid-range radar front module out of the pocket on the front fascia.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.

Perform the appropriate Range Radars calibration routine. Refer to PROGRAMMING AND CALIBRATION .
