Removal And Installation: Radio

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .

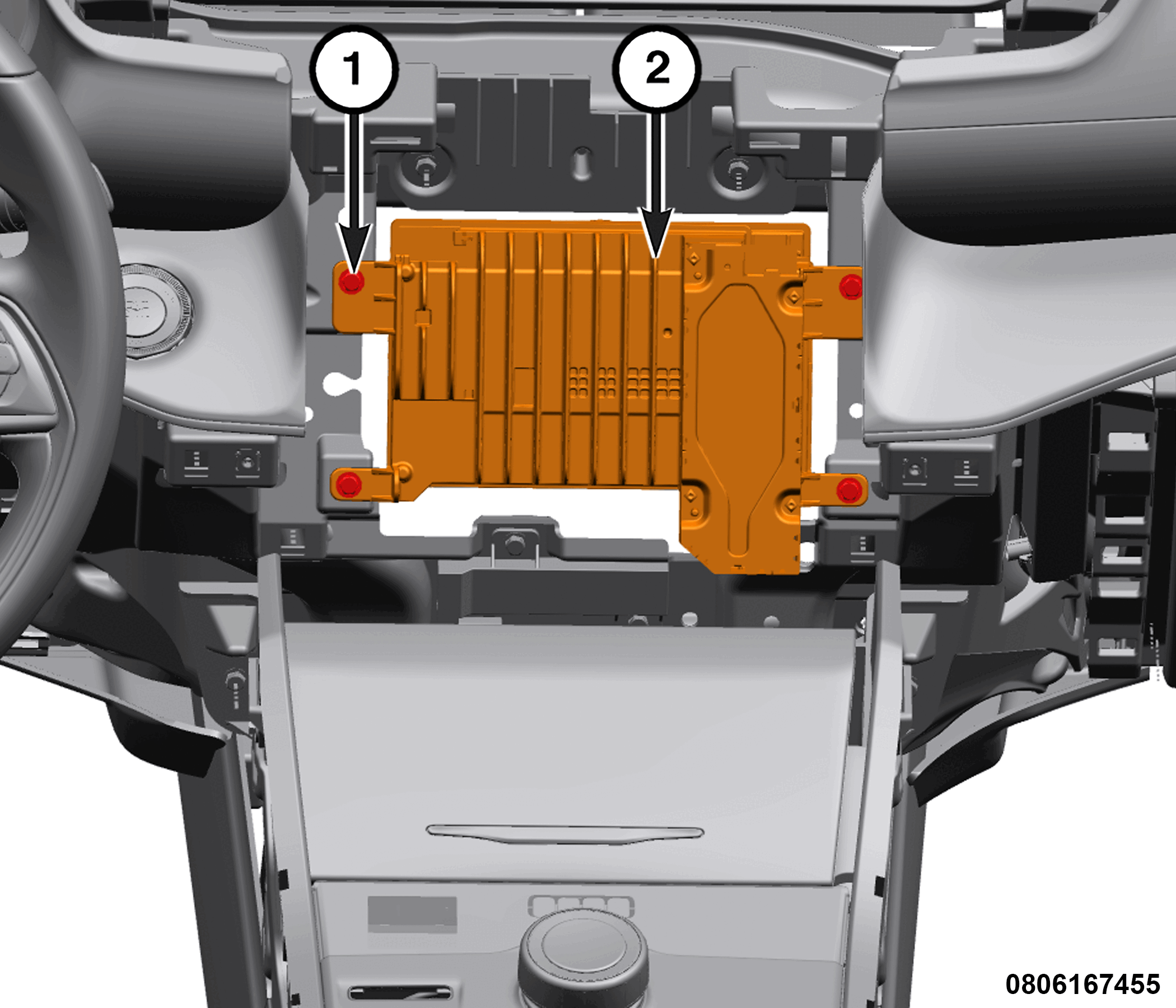

Courtesy of CHRYSLER GROUP, LLC

1 - Fasteners

2 - Radio
Remove the radio fasteners.
Disconnect the wire harness connectors from the radio and remove it from the vehicle.

INSTALLATION

Connect the wire harness connectors to the radio.
Install and securely tighten the radio fasteners.
Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .
