Player, DVD: Installation

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

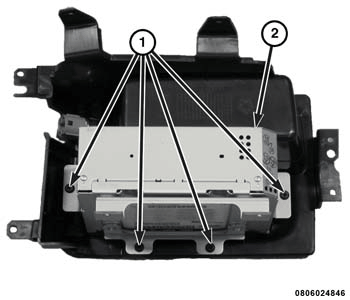

GC0158311Courtesy of CHRYSLER GROUP, LLC
  1. Place the disc player (2) onto the floor console bin.
  2. Install mounting screws (1).

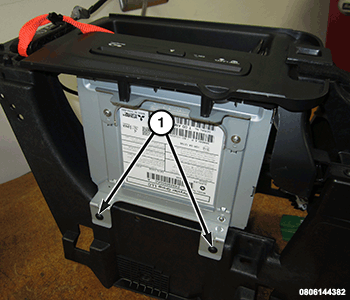

    GC0180953Courtesy of CHRYSLER GROUP, LLC
  3. Install bin into console housing and install fasteners (1).
  4. Install the floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
  5. Connect the negative battery cable.
