Media Hub: Installation

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

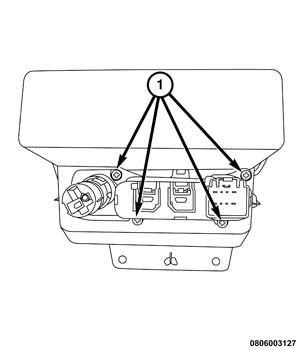

GC0158373Courtesy of CHRYSLER GROUP, LLC
  1. Install the four fasteners (1) retaining the Media hub to the Instrument Panel Bin and securely tighten.
  2. Install the Instrument Panel Bin. Refer to BIN, INSTRUMENT PANEL, INSTALLATION .
  3. Connect the negative battery cable.
