CROSSMEMBER, Rear: Removal

WARNING: This page is about a different car, the 2019 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. On each side of vehicle rear, remove wheels. Refer to WHEELS, STANDARD PROCEDURE .
  3. Remove the rear drive shaft. Refer to SHAFT, DRIVE, REAR, REMOVAL .
    GC0145588Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Front rotor shown in illustration, rear rotor similar.

  4. Bottom caliper pistons into the caliper.
  5. Remove the brake caliper tension clip (1) by pressing rearward on the front of the clip (2) while pulling the clip out (3) from the caliper.
    GC0146230Courtesy of CHRYSLER GROUP, LLC
  6. Remove the caliper slide dust bolt shields and loosen the brake caliper slide bolts (guide pins) (1).
    CAUTION:

    Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose will result. Provide a suitable support to hang the caliper securely.

  7. Remove the brake caliper (2) from the caliper adapter (3) and hang the brake caliper (2).
    GC0145673Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the brake cable end from the equalizer (3).
    GC0184498Courtesy of CHRYSLER GROUP, LLC
  9. On both right and left side, remove the fastener (1) that secure the brake line support (2) to the upper control arm.
    GC0146149Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect both wheel speed sensor wiring connectors (1) from the wiring harness connectors (2).
    GC0184513Courtesy of CHRYSLER GROUP, LLC

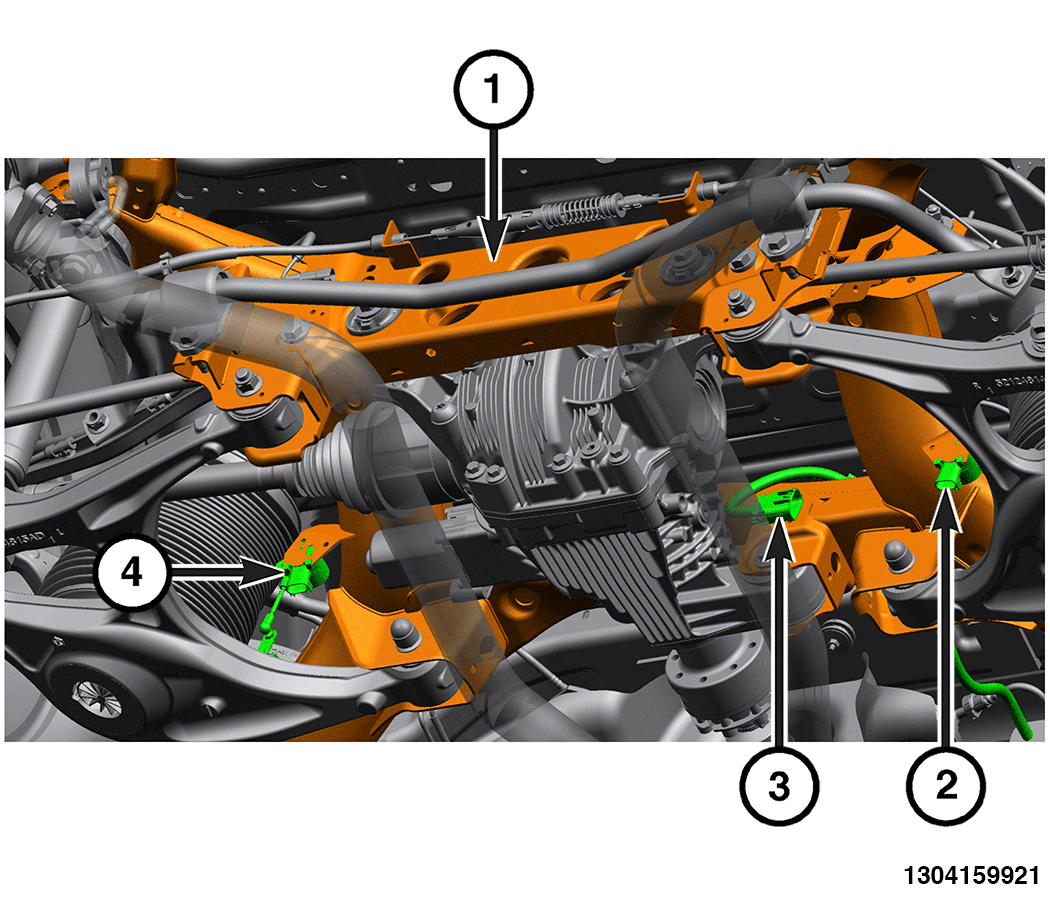

  11. If equipped, disconnect the ride height adjuster wire harness connectors (2, 4) and the center wire harness connector (3).
    GC0145856Courtesy of CHRYSLER GROUP, LLC
  12. Support the outboard end of the lower control arm with a suitable holding fixture.
  13. Remove the lower shock bolt and nut (3).
  14. Lower the support on the outboard end of the lower control arm just enough to tilt the shock (1) into position for removal between the front and rear arms of the lower control arm.
    GC0079773Courtesy of CHRYSLER GROUP, LLC
    1 - BODY
    2 - MARKER (OR CRAYON)
    3 - CROSSMEMBER BUSHING FLANGE
  15. Carefully mark location of rear crossmember on body at all four mount (bushing) locations using a marker or crayon. Do not use a scratch awl to mark location.
  16. Position an extra pair of jack stands under and support forward end of engine cradle to help stabilize vehicle during rear suspension removal/installation.
    GC0095726Courtesy of CHRYSLER GROUP, LLC
  17. Position under-hoist utility jack or transmission jack (2) under center of rear crossmember (1). Raise jack head to contact crossmember and secure in place. When securing crossmember to jack, be sure not to secure stabilizer bar.
    GC0146229Courtesy of CHRYSLER GROUP, LLC
  18. Remove the four crossmember bolts (2) and remove the crossmember (1).
