Motor, Window Regulator: Installation

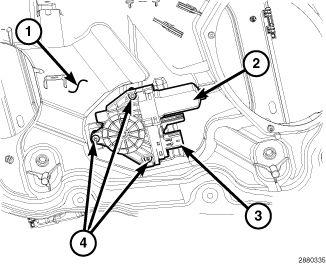

GC0145377Courtesy of CHRYSLER GROUP, LLC
NOTE:

The power window motor may need to be momentarily actuated to line up the gear in the drive assembly with the regulator.

  1. Connect the power window motor wiring harness connector to the motor electrical connector receptacle (3).
  2. Position the power window motor and gear assembly (2) onto the carrier plate (1), aligning the drive gear with the regulator.
  3. If necessary, temporarily connect the window switch assembly and battery to actuate the motor.
  4. Install and tighten the fasteners (4) securing the power window motor and gear assembly to the carrier plate.

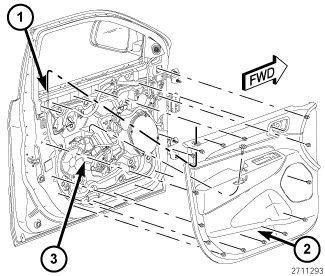

    GC0145458Courtesy of CHRYSLER GROUP, LLC
  5. Install the door interior trim panel (2). Refer to PANEL, DOOR TRIM, INSTALLATION or PANEL, REAR DOOR TRIM, INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
