Fascia, Front: Installation: Notes

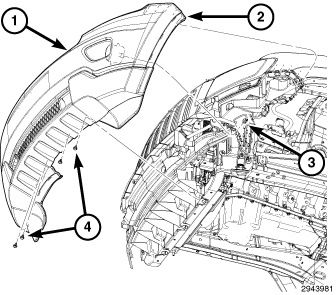

- Position the front fascia (1) and connect the fog lamp electrical connectors (3), if equipped.
- Install the fascia, locking the integral latches at the radiator grille assembly and at the wheel well openings (2).
- Install the four lower retainers (4).
- If equipped, connect the park sense electrical connectors.
- Install the fasteners (3) that secure the wheel liners (2) to the fascia (4).

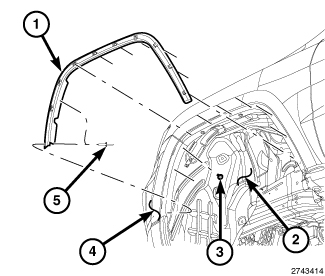

- Position the front fender flares (1) and press in place, engaging the retaining clips.
- Install new plastic rivets (5) to secure the fender flares.

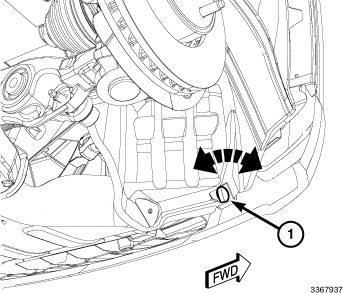

- Install the 1/4 turn fasteners (1) and secure the lower wheel liner to the fascia.

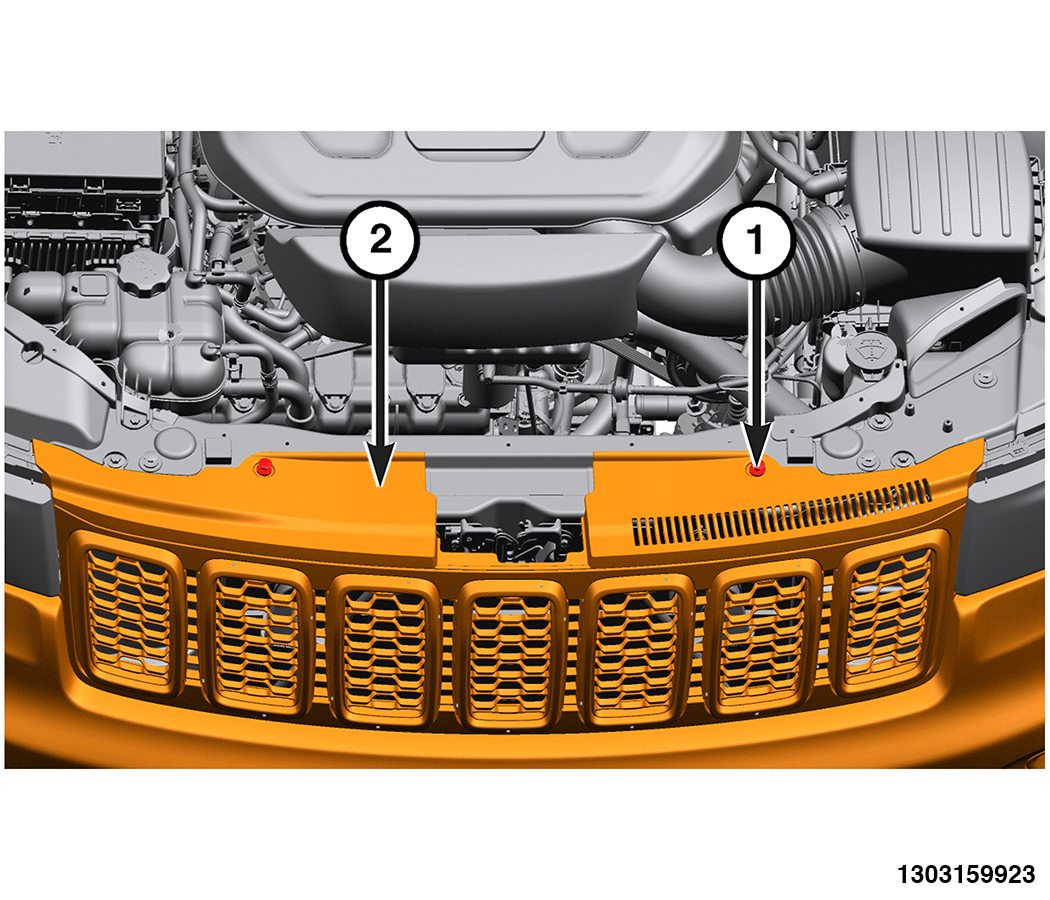

- Install the fasteners (1) on the top of the front fascia assembly (2).

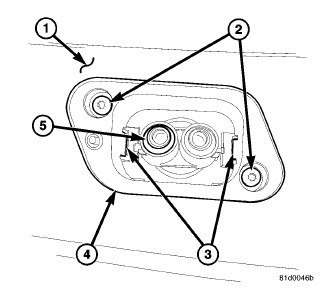

- If equipped with headlamp washers, position the headlamp washer nozzle mounting cup (4) to the mounting hole in the front fascia (1).
- While holding the mounting cup in place with one hand reach up behind the front fascia to engage the washer nozzle (5) with the mounting cup, then press the two pieces together until both latch features of the mounting cup are fully engaged with the mounting flange of the nozzle.
- Install the two screws (2) that secure the mounting cup to the nozzle mounting flange. Tighten the screws securely.
- Pull the telescopic nozzle out to its fully extended position.
- With the nozzle extended, engage the latch features on each side of the headlamp washer nozzle cover to the sides of the nozzle, then release the nozzle back to its retracted position.
