Module, Radio Frequency (RF Hub): Removal

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the rear shelf cover. Refer to PANEL, REAR SHELF, REMOVAL .

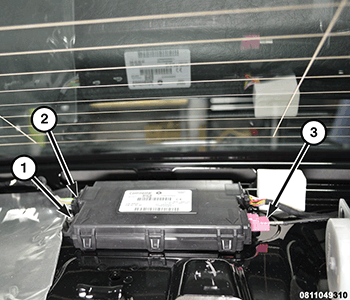

    GC0170521Courtesy of CHRYSLER GROUP, LLC
  3. Remove the Remote Frequency Hub (RF-Hub) retainers (1).
  4. Disconnect the wire harness connectors (2).
  5. If equipped, disconnect the remote start antenna (3).
  6. Remove the RF-Hub from the vehicle.
