Module, Park Assist (PAM): Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

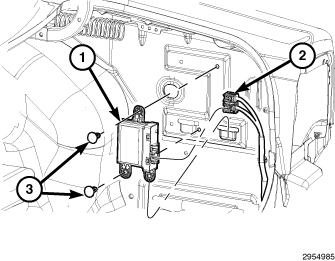

GC0144523Courtesy of CHRYSLER GROUP, LLC
  1. Position the Park Assist Module (PAM) (1) to the right quarter inner panel above and behind the right rear wheel house. Be certain to engage the lower mounting tab into the stamped pocket in the right quarter inner panel.
  2. Install the retainers (3) that secure the PAM to the right quarter inner panel.
  3. Connect the wire harness connectors (2) to the PAM.
  4. Install the trim onto the right quarter inner panel. Refer to PANEL, TRUNK TRIM, REAR, INSTALLATION .
  5. Connect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
