Module And Bracket

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check to be certain that the two rivet nuts are properly installed and in good condition in front bumper support bar.
  2. Position the mounting bracket to the bumper support bar.

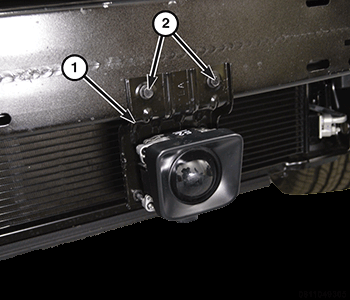

    GC0170147Courtesy of CHRYSLER GROUP, LLC
  3. Install the fasteners (2) that secure the mounting bracket (1) to the support bar. Tighten the fasteners to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  4. Install the energy absorber.

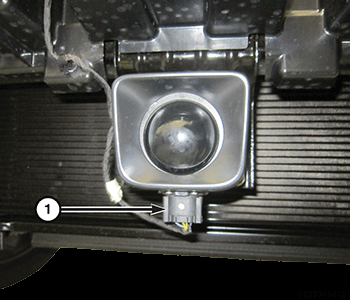

    GC0170255Courtesy of CHRYSLER GROUP, LLC
  5. Connect the wiring harness connector (1) to the ACC sensor module.
  6. Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION .
  7. Connect the negative battery cable.
  8. Perform the ACC module alignment procedure. Refer to MODULE, ADAPTIVE CRUISE CONTROL (ACC), MODULE PROGRAMMING .
