Standard Procedure - Drain And Fill

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC

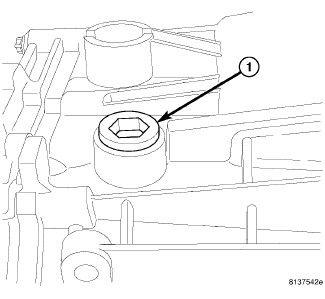

Place an oil drain pan under the drain plug (1). Remove the drain plug (1) and drain the fluid.
Install the drain plug and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Remove the fill plug (1) and fill the transmission to the proper level using the specified fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
Install the fill plug and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
