Isolator, Rear CROSSMEMBER, Differential: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
It is important that tapered end (3) of bushing be installed first into forward end of crossmember to ease installation.
NOTE:
When installing Thrust Bearing (7), be sure to place hardened side toward Bolt head.
- Insert tapered end of NEW bushing (3) into forward end of crossmember bushing bore.

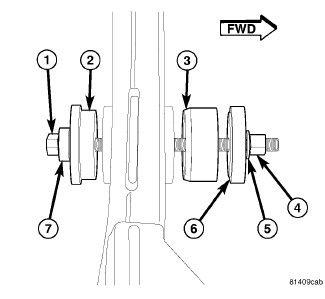

- Assemble tools (See following list) through crossmember and bushing as shown.
- (1) Bolt
- (2) Disc (special tool #9520-1, Installer Disc)
- (3) Bushing
- (4) Nut
- (5) Washer
- (6) Installer (special tool #9520-2A, Installer, Bushing)
- (7) Thrust Bearing
- Insert Installer (6) into end of bushing and Disc (2) into opposite end of crossmember bushing bore.
- While holding Nut (4) from rotating, tighten Bolt (1) using hand tools , pressing bushing into crossmember. Stop when Installer (6) bottoms against bushing bore.
- Remove tools.
- Install the rear crossmember. Refer to CROSSMEMBER, TRANSMISSION, INSTALLATION .
