Stabilizer Bar, Front: Removal: RWD

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove belly pan. Refer to BELLY PAN, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
On each side of vehicle, remove the stabilizer bar heat shield to crossmember bolts (1). Remove heat shield (2).

Courtesy of CHRYSLER GROUP, LLC
On each side of vehicle, remove the stabilizer bar to crossmember bolts (1).

Courtesy of CHRYSLER GROUP, LLC
On each side of vehicle, remove retainer halves (1, 2) from around stabilizer bar isolator (3).

Courtesy of CHRYSLER GROUP, LLC

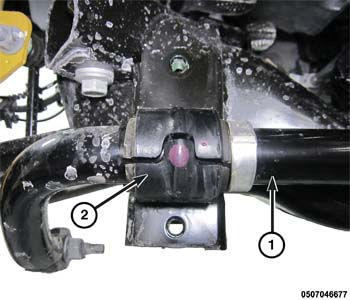

Utilizing split in isolator, remove each isolator (2) from stabilizer bar (1).

Courtesy of CHRYSLER GROUP, LLC
On each side of vehicle, remove the stabilizer link to stabilizer bar nut (4). Slide link ball joint stem (1) from bar (3), then remove bar from vehicle.
