Bushing(S), Lower Control Arm: Removal
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Remove lower control arm. Refer to ARM, LOWER CONTROL, RWD, REMOVAL .

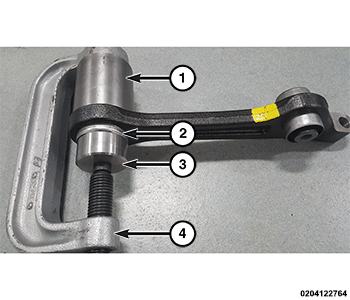

- Assemble the parts of Remover/Installer as shown in illustration (special tool #2049004020, Receiver, Bushing) (1), (special tool #2049003020, Remover, Bushing) (3), (special tool #C-4212F, Press, Ball Joint) (4).
- Thread the rod in until the lower control arm bushing (2) is pressed out of the lower control arm.
