Converter, Catalytic: Installation: 6.4L
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

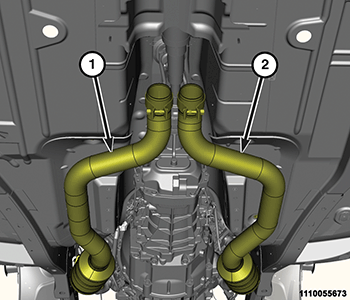

- Position the left (1) and/or right (2) catalytic converter onto the exhaust manifold flange, and install the flange nuts finger tight.
- Connect the oxygen sensor wire harness connectors.

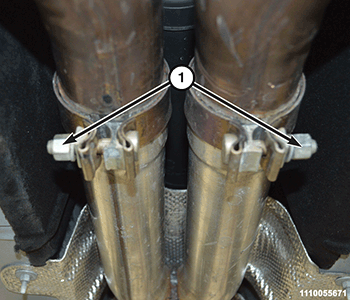

- Insert the muffler and resonator assembly onto the front exhaust pipe, without tightening the band clamps (1) at this time.

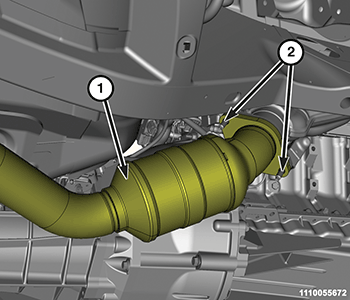

- Tighten the catalytic converter (1) to exhaust manifold flange nuts (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Tighten the band clamps to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Lower the vehicle.
- Connect the negative battery cable.
- Start the engine and check for exhaust leaks.
