Air Cleaner: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

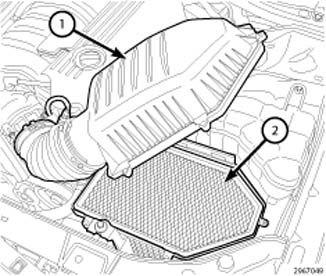

- Install the air cleaner element (2) into the housing.
- Align the air cleaner housing cover (1) locating tabs into the housing while lowering the cover into position.
 Courtesy of CHRYSLER GROUP, LLC
|

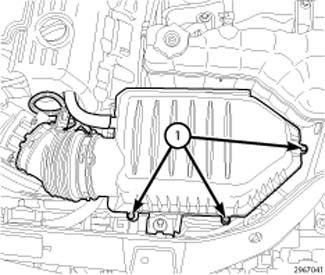

- Securely tighten the air cleaner housing cover screws (1).
