Positive - Engine Compartment

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
GC0192459Courtesy of CHRYSLER GROUP, LLC

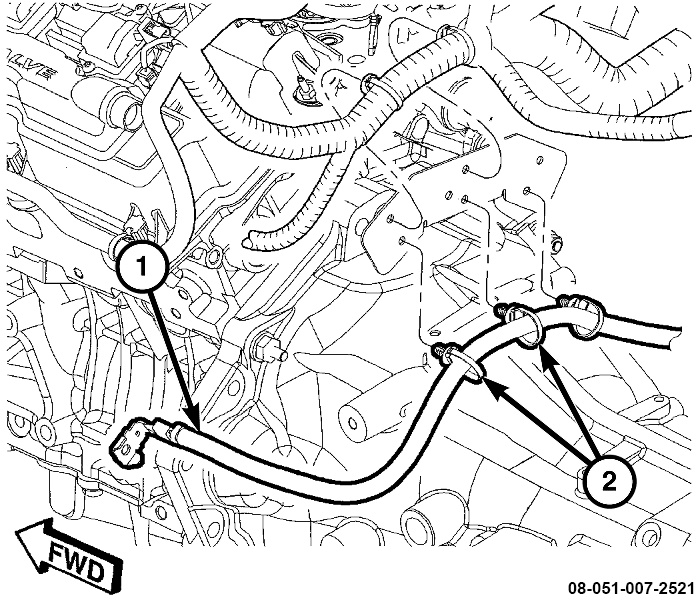

  1. Position the battery positive cable (1) in the engine compartment.
  2. On the 3.6L and 5.7L secure the battery positive cable (1) to the routing clips (2) located at the back of the engine.
    GC0192417Courtesy of CHRYSLER GROUP, LLC

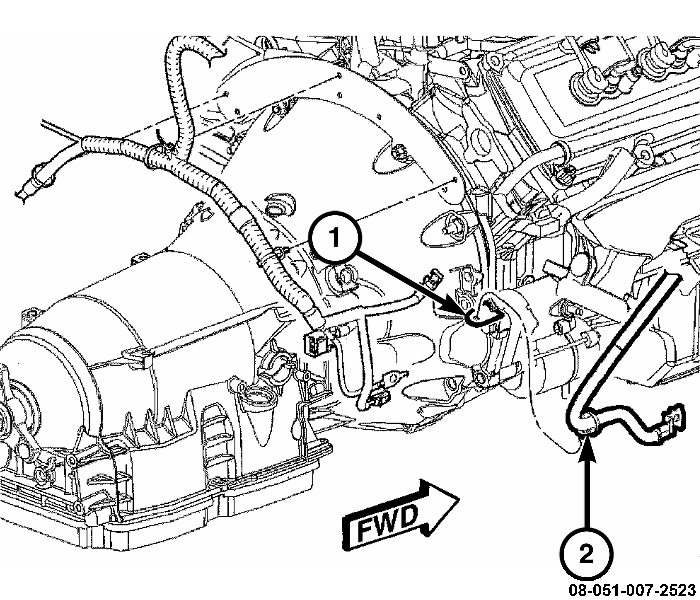

  3. On the 5.7L secure the battery positive cable to the routing clip (2) located at the back of the starter (1).
    GC0192414Courtesy of CHRYSLER GROUP, LLC

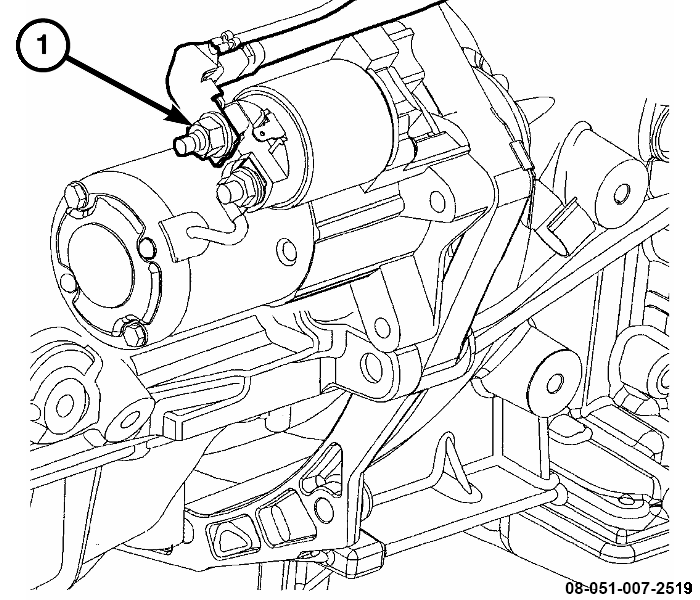

  4. Install the battery positive cable to starter fastener (1).
    GC0192415Courtesy of CHRYSLER GROUP, LLC

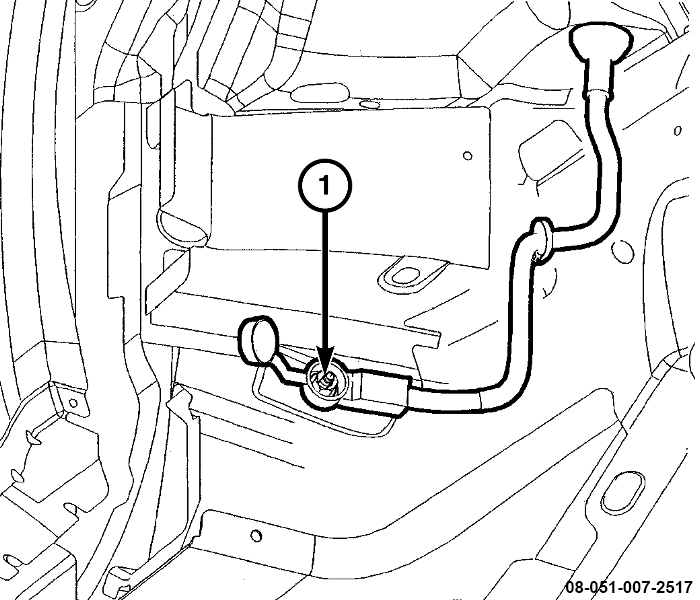

  5. Install the battery positive cable to bulkhead fastener (1).
  6. Install the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
  7. Lower the vehicle.
    GC0170363Courtesy of CHRYSLER GROUP, LLC
  8. Connect the negative battery cable to the Intelligent Battery Sensor (IBS) M8 stud (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS  .
  9. Install the spare tire cover.
