Negative - Engine Compartment

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

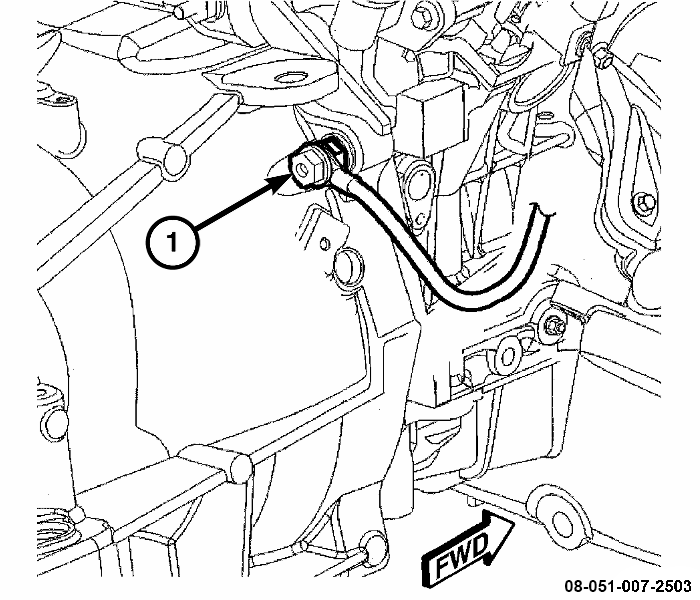

GC0192450Courtesy of CHRYSLER GROUP, LLC
  1. Position the battery negative cable in the engine compartment.
  2. Raise the vehicle on hoist.
  3. Install the fastener (1) securing the battery negative cable to the transmission housing. Tighten the bolt to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  4. One at a time, install the battery cable retaining pushpins, fasteners and routing clips until the cable is installed exactly where it was in the vehicle.
  5. Lower the vehicle.

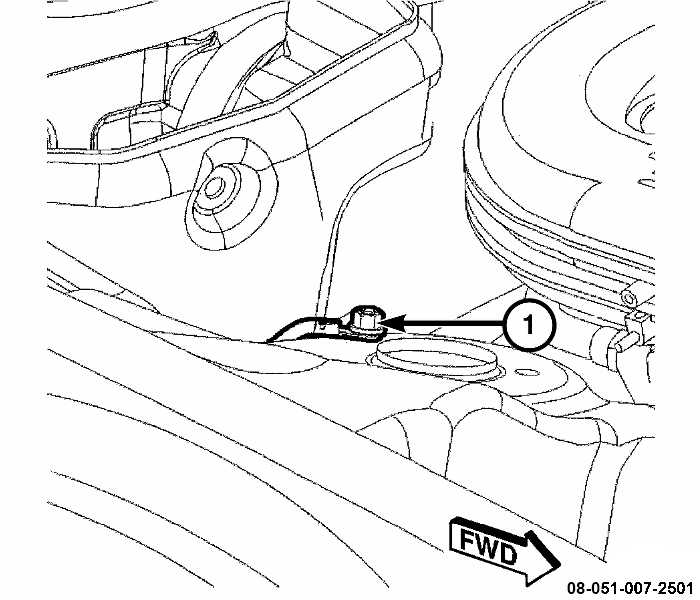

    GC0192448Courtesy of CHRYSLER GROUP, LLC
  6. Install the fastener (1) securing the battery negative cable to the right front strut tower. Tighten the bolt to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

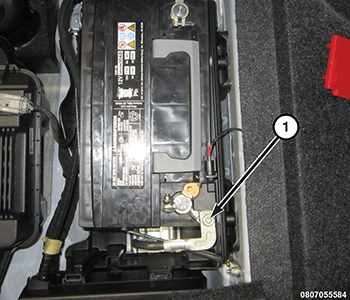

    GC0170363Courtesy of CHRYSLER GROUP, LLC
  7. Connect the negative battery cable to the Intelligent Battery Sensor (IBS) M8 stud (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  8. Install the spare tire cover.
