Module-Selective Catalytic Reduction (Standard) Connector End View (D2524A)

Harness-Family: Jumper SCR

Color: BLACK

Gender: FEMALE

Part Number: 2319242-1_9-2208656-9

Part Description: Not Available

Connector No: D2524A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

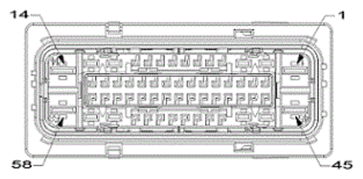

Fig 1: Module-Selective Catalytic Reduction Connector End View (Standard)

Courtesy of CHRYSLER

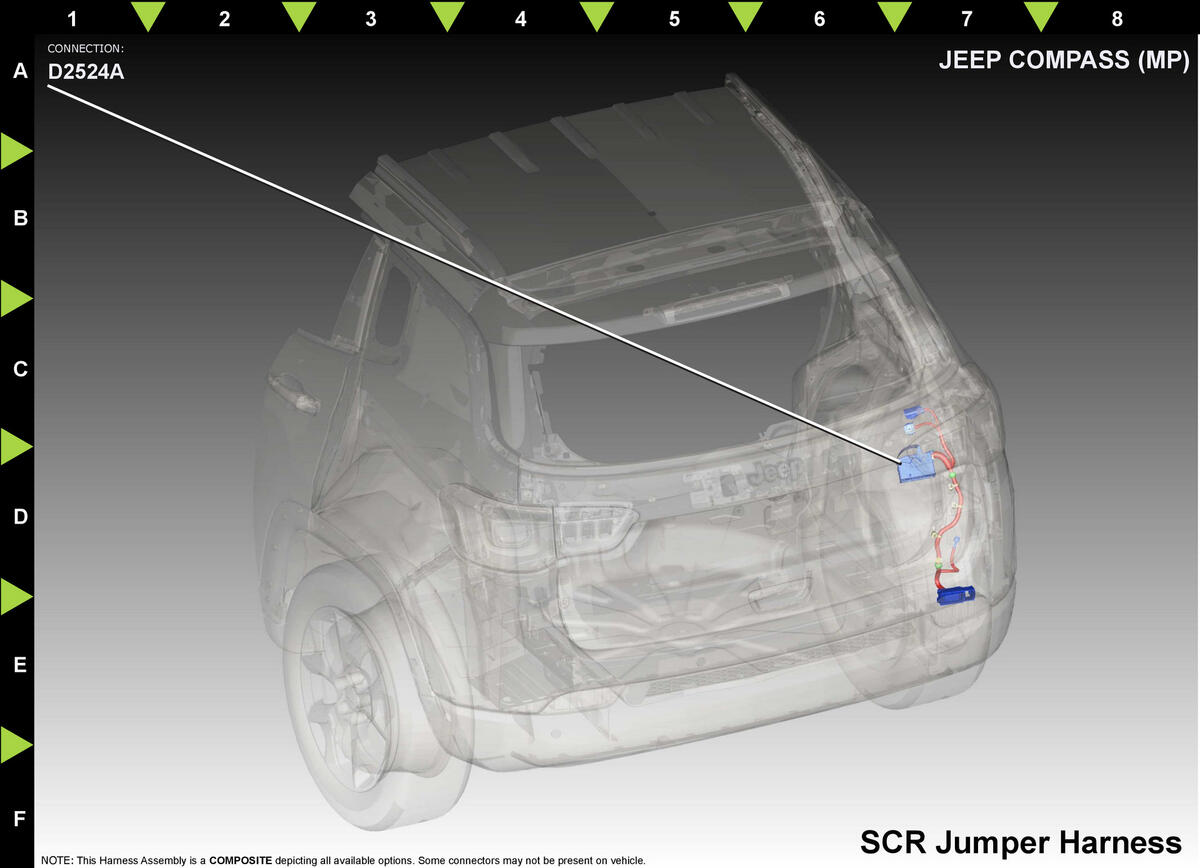

Fig 2: Module-Selective Catalytic Reduction Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A601

RD/DB

4.0

FUSED B(+)

N/A

K488

DB/GN

0.75

UREA TANK HEATER RTN

N/A

K429

OG/BN

0.75

UREA LINE HEATER RLY LOW SIDE CONTROL

N/A

K493

DB/BN

0.50

UREA SYSTEM PUMP DRIVER B

N/A

K494

DB/YE

0.50

UREA SYSTEM PUMP DRIVER C

N/A

F203

PK/BU

1.0

FUSED IGNITION SWITCH OUTPUT

N/A

K428

0.50

DEF INJECTOR POSITIVE

N/A

K426

DB/GN

0.50

DEF INJECTOR NEGATIVE

N/A

K414

BN/YE

0.50

DEF LEVEL/TEMP SIGNAL

N/A

D469

0.50

PRIVATE CAN (+)

N/A

K423

DB/GY

0.50

UREA TANK PRESSURE SENSOR SIG

N/A

K486

BN/VT

0.50

UREA PUMP HALL SENSOR SUPPLY

N/A

K496

BN/GN

0.50

UREA PUMP HALL SIGNAL 2

N/A

K495

BN/DB

0.50

UREA PUMP HALL SIGNAL 1

N/A

D306

0.50

CAN C (-)

N/A

D305

DB/WH

0.50

CAN C (+)

N/A

K420

DB/OG

0.50

DEF LEVEL/TEMP RETURN

N/A

K487

DB/BG

0.50

UREA TANK HEATER SUPPLY

N/A

D468

GY/WH

0.50

PRIVATE CAN (-)

N/A

K485

BN/BU

0.50

UREA PUMP HALL SENSOR RTN

N/A

K497

BN/GY

0.50

UREA PUMP HALL SIGNAL 3

N/A

Z924

4.0

GROUND

N/A

K403

0.75

DEF TANK HEATER SUPPLY

N/A

K404

0.75

DEF LINE HEATER SUPPLY

N/A

S002

0.75

SHIELD 2

N/A

K492

DB/VT

0.50

UREA SYSTEM PUMP DRIVER A

N/A

⁽¹⁾	Pins not listed are not used for this connector
