Module-Security Gateway C2 (Standard) Connector End View (D3921B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 7283-9028-30

Part Description: Not Available

Connector No: D3921B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

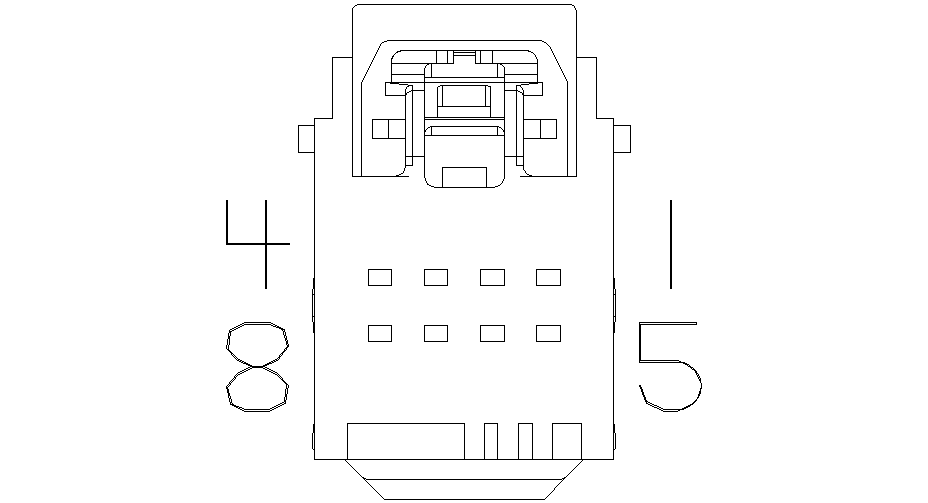

Fig 1: Module-Security Gateway C2 Connector End View (Standard)
GCWD1091122Courtesy of CHRYSLER

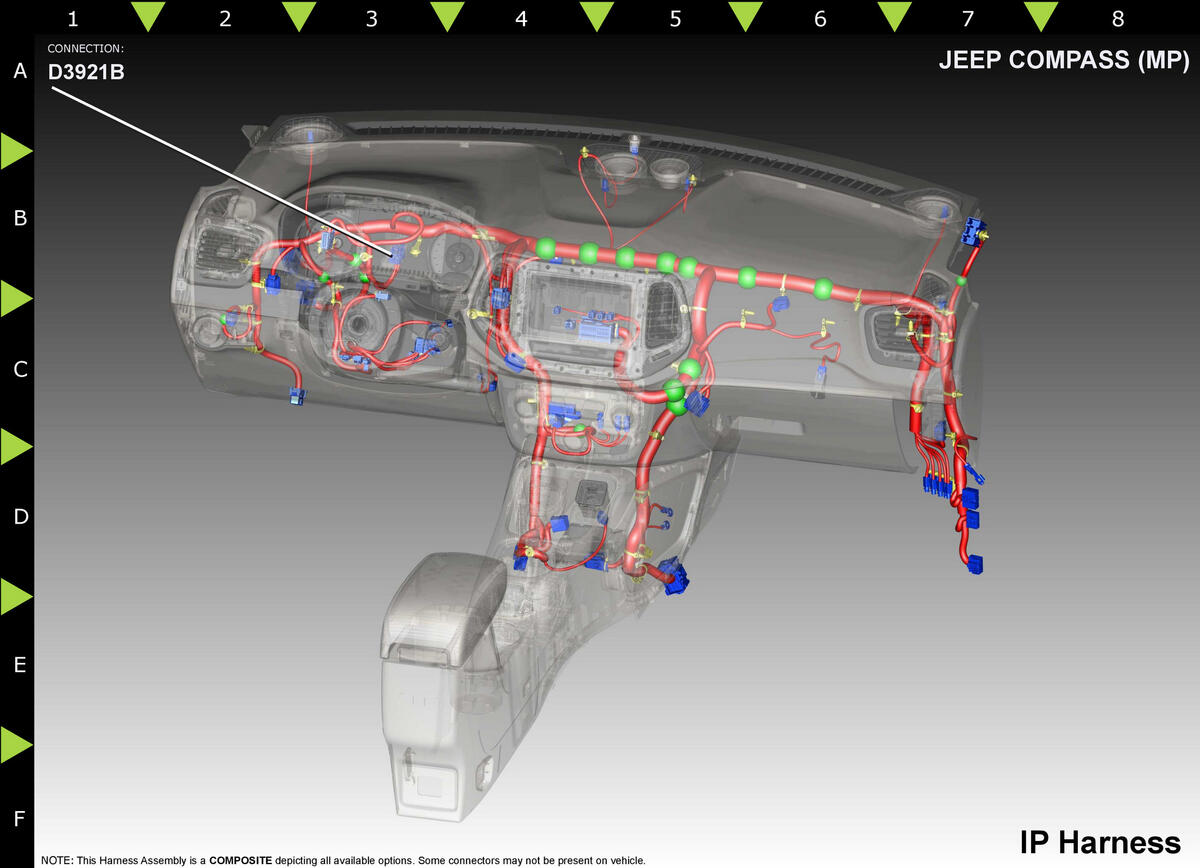

Fig 2: Module-Security Gateway C2 Component Location (Standard)
GCWD1288824Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D437 DB 0.50 CAN IHS (+) AT N/A
2 D434 BG 0.50 DIAGNOSTIC CAN IHS (+) N/A
3 D353 VT/WH 0.50 CAN IHS (+) N/A
4 Z937 BK 0.75 GROUND BASE
5 A910 RD 0.75 FUSED B(+) N/A
6 D438 WH 0.50 CAN IHS (-) AT N/A
7 D433 WH 0.50 DIAGNOSTIC CAN IHS (-) N/A
8 D352 WH 0.50 CAN IHS (-) BASE
(1) Pins not listed are not used for this connector
