Module-Security Gateway C1 (Standard) Connector End View (D3921A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 7283-9052-30

Part Description: Not Available

Connector No: D3921A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

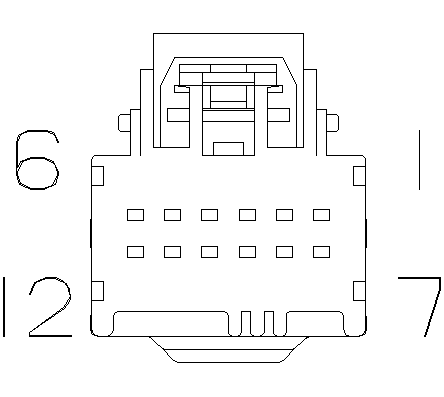

Fig 1: Module-Security Gateway C1 Connector End View (Standard)
GCWD1016838Courtesy of CHRYSLER

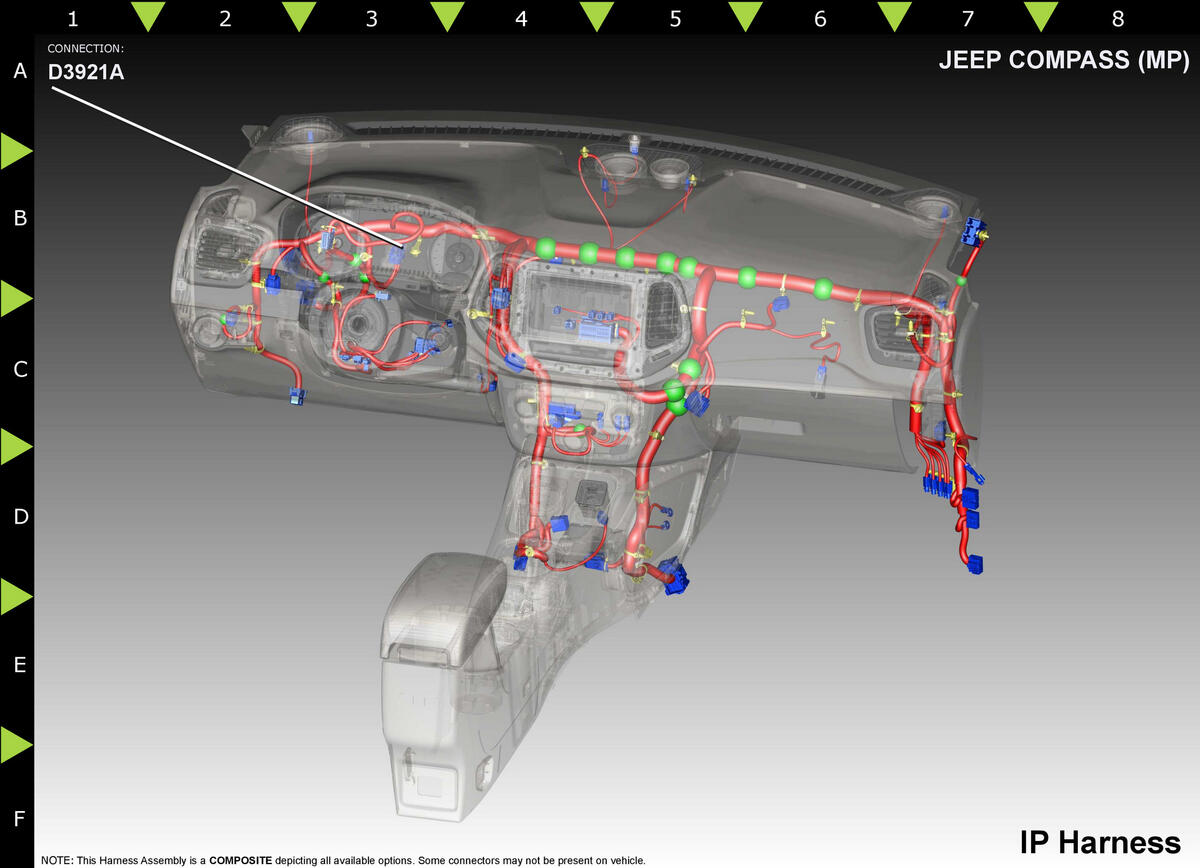

Fig 2: Module-Security Gateway C1 Component Location (Standard)
GCWD1288823Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D360 BG/VT 0.50 CAN CH (+) N/A
2 D478 VT/YE 0.50 DIAGNOSTIC CAN CH (+) N/A
3 D428 BG 0.50 DIAGNOSTIC CAN C (+) N/A
4 D436 GY 0.50 CAN C (+) AT N/A
5 D351 WH/BN 0.50 CAN C (+) N/A
6 Z937 BK 0.50 GROUND BASE
7 F948 PK/GN 0.50 FUSED IGNITION N/A
8 D361 BG 0.50 CAN CH (-) N/A
9 D477 YE/VT 0.50 DIAGNOSTIC CAN CH (-) N/A
10 D427 YE 0.50 DIAGNOSTIC CAN C (-) N/A
11 D435 YE/VT 0.50 CAN C (-) AT N/A
12 D350 YE 0.50 CAN C (-) N/A
(1) Pins not listed are not used for this connector
