Module-Rear Driveline (Standard) Connector End View (D2799A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 10090636

Part Description: Not Available

Connector No: D2799A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

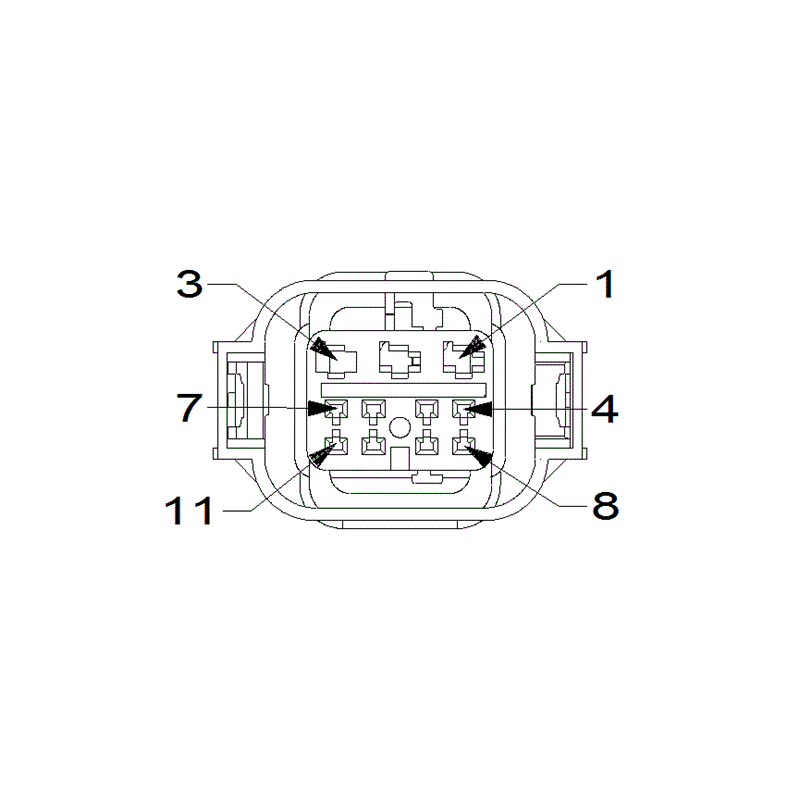

Fig 1: Module-Rear Driveline Connector End View (Standard)
GCWD1011683Courtesy of CHRYSLER

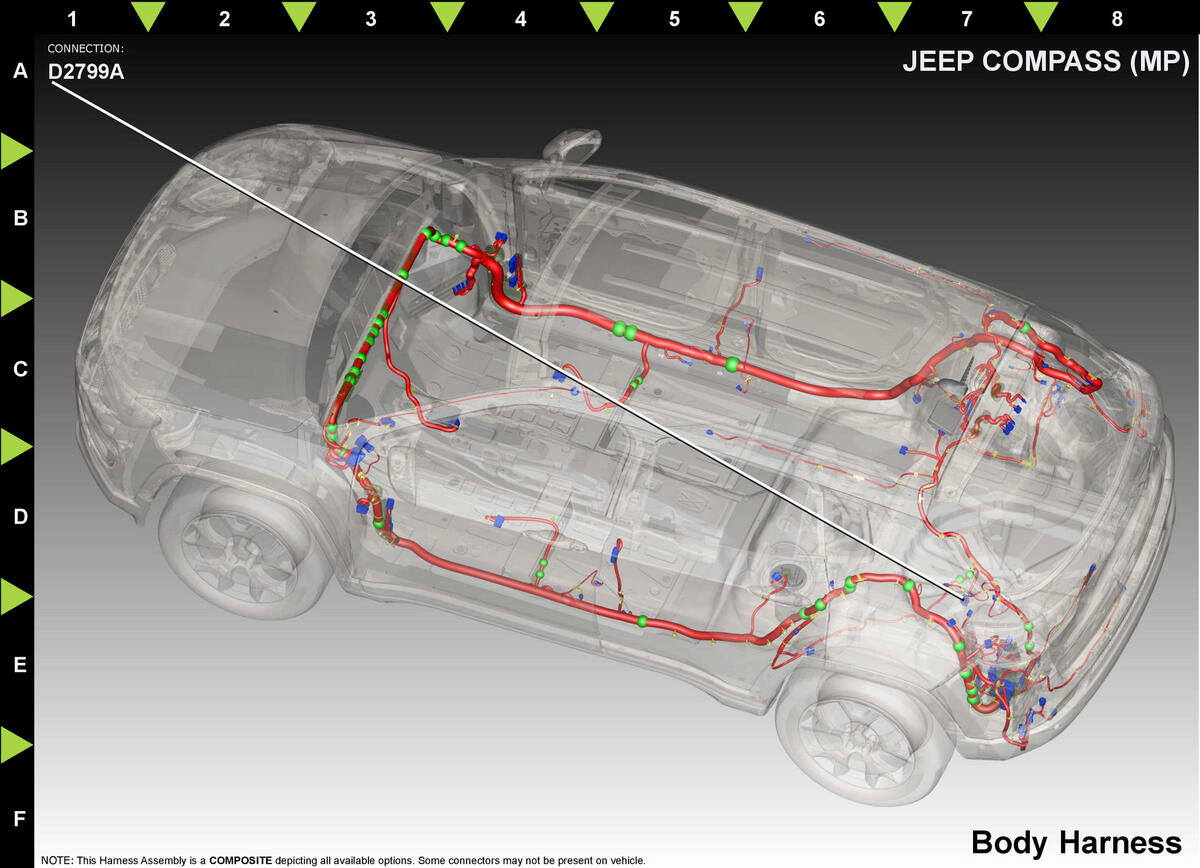

Fig 2: Module-Rear Driveline Component Location (Standard)
GCWD1288679Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
2 T338 DG/BG 2.5 RDM MOTOR (+) N/A
3 T339 DG/GN 2.5 RDM MOTOR (-) N/A
4 T332 DG/VT 0.50 RDM POSITION SENSOR SUPPLY N/A
5 T330 DG/BN 0.50 RDM TEMP SENSOR RETURN N/A
6 T334 DG/GY 0.50 RDM POSITION SENSOR 2 SIGNAL N/A
7 S003 BK 0.50 SHIELD 3 N/A
8 T331 DG/OG 0.50 RDM TEMP SENSOR SIGNAL N/A
9 T335 DG/YE 0.50 RDM POSITION SENSOR RETURN N/A
10 T333 DG/WH 0.50 RDM POSITION SENSOR 1 SIGNAL N/A
11 S004 BK 0.75 SHIELD 4 N/A
(1) Pins not listed are not used for this connector
