Module-Powertrain Control C2 (1.6L Diesel) Connector End View (D3837B)

Harness-Family: Engine_Diesel

Color: BLACK

Gender: FEMALE

Part Number: 1/16366/07

Part Description: Not Available

Connector No: D3837B

Option: 1.6L DIESEL

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Powertrain Control C2 Connector End View (1.6L DIESEL)
GCWD1231862Courtesy of CHRYSLER

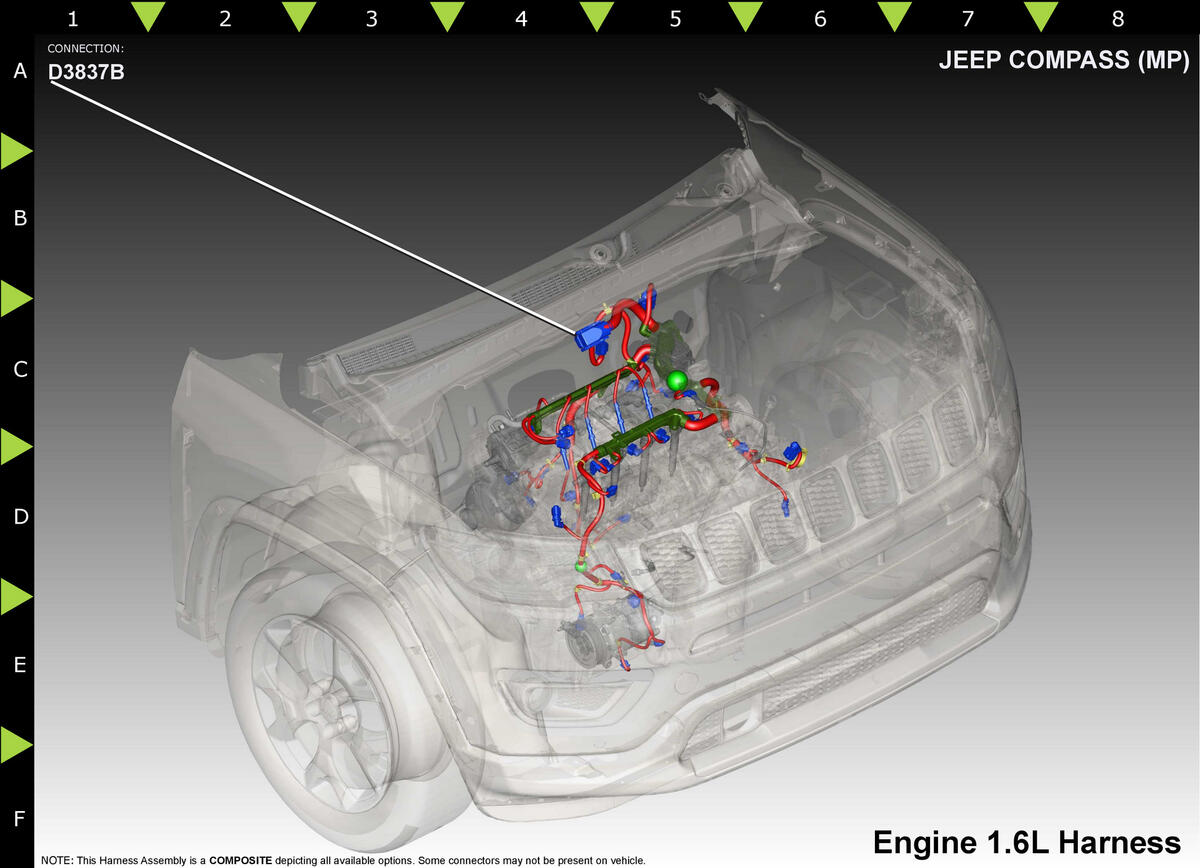

Fig 2: Module-Powertrain Control C2 Component Location (1.6L DIESEL)
GCWD1288518Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
46 K79 RD/VT 0.75 O2 1/1 HEATER CONTROL N/A
55 K900 YE 0.50 SENSOR GROUND N/A
56 K185 GN 0.50 EGT SIGNAL N/A
74 K900 OG 0.50 SENSOR GROUND N/A
75 K372 VT 0.50 EGT SIGNAL N/A
83 K902 RD/BK 0.50 O2 RETURN (UPSTREAM) N/A
84 K41 RD/YE 0.50 O2 1/1 SIGNAL N/A
104 K89 RD/WH 0.50 O2 1/1 POSITIVE CURRENT CONTROL N/A
105 K103 BK/WH 0.50 O2 1/1 PUMP CELL CURRENT TRIM N/A
(1) Pins not listed are not used for this connector
