Module-Powertrain Control C1 (Standard) Connector End View (D3837A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 1_928_405_735-726-074-454

Part Description: Not Available

Connector No: D3837A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Powertrain Control C1 Connector End View (Standard)
GCWD1013674Courtesy of CHRYSLER

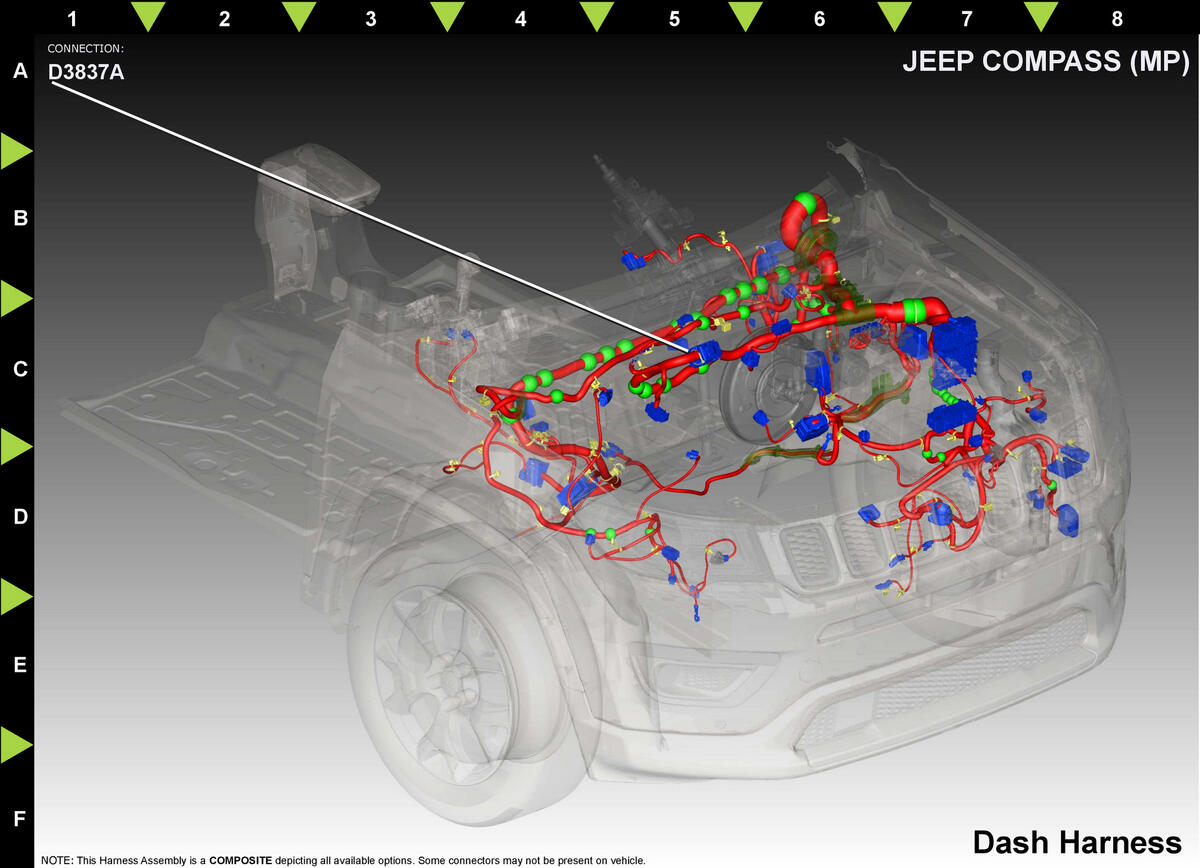

Fig 2: Module-Powertrain Control C1 Component Location (Standard)
GCWD1288930Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F344 BN/GY 1.5 FUSED ASD RELAY OUTPUT N/A
2 Z908 BK/GN 1.5 GROUND N/A
3 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
4 Z908 BK/GN 1.5 GROUND N/A
5 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
6 Z908 BK/GN 1.5 GROUND N/A
7 K854 VT/BN 0.50 5 VOLT SUPPLY N/A
9 G123 VT/GN 0.35 WIF SENSOR 1 SIGNAL N/A
10 B135 DG/GN 0.35 BRAKE SIGNAL 1 N/A
11 T22 YE/VT 0.35 BACKUP LAMP SWITCH SIGNAL N/A
13 D1 BG/WH 0.50 CAN C (+) N/A
14 D2 YE 0.50 CAN C (-) N/A
15 K951 VT/GY 0.50 EXHAUST DIFFERENTIAL PRESSURE SENSOR GROUND N/A
16 K355 VT 0.50 EXHAUST DIFFERENTIAL PRESSURE SIGNAL N/A
18 K521 DB/OG 0.75 SCR RELAY 2 CONTROL N/A
21 C13 BU/OG 0.75 A/C CLUTCH CONTROL N/A
22 K522 DB/GN 0.75 SCR RELAY 1 CONTROL N/A
24 K167 BN/YE 0.50 APP SENSOR GROUND 1 N/A
25 K23 BN/WH 0.50 APP SIGNAL 1 N/A
26 K400 BN/VT 0.50 APP SENSOR GROUND 2 N/A
27 K29 WH/BN 0.50 APP SIGNAL 2 N/A
29 K386 BN/DB 0.75 EGT SIGNAL N/A
33 K388 BN 0.75 SENSOR GROUND N/A
37 K173 BN/VT 0.50 LOW RAD FAN RELAY CONTROL N/A
40 K175 BN/BU 0.75 RAD FAN CONTROL N/A
41 K852 GY/BU 0.50 5 VOLT SUPPLY N/A
43 C818 BU/OG 0.50 A/C PRESSURE 5 VOLT SUPPLY N/A
44 C18 BU/BN 0.50 A/C PRESSURE SIGNAL N/A
45 K156 GY/VT 0.50 FUEL TEMP SIGNAL N/A
46 K165 DG/WH 0.35 CLUTCH POSITION SIGNAL N/A
47 K382 GY/BN 0.75 EGT SIGNAL N/A
48 C918 BK/BU 0.50 A/C PRESSURE RETURN N/A
49 K164 DG/BK 0.50 SENSOR GROUND N/A
50 K379 DB/GY 0.75 SENSOR GROUND N/A
51 N116 DB 0.50 CRANKCASE VENT HEATER CONTROL N/A
54 K348 BN/YE 0.75 SMART POWER RELAY RTN N/A
57 K202 DB/VT 1.0 GLOW PLUG RELAY CONTROL N/A
59 K851 DG/PK 0.50 5 VOLT SUPPLY N/A
62 K354 VT/BU 0.50 EXHAUST DIFFERENTIAL PRESSURE 5 VOLT SUPPLY N/A
65 K159 VT/DB 0.50 FUEL TEMP SENSOR RETURN N/A
68 K330 BN/BU 0.75 GLOW PLUG MODULE CTRL UREA
69 K804 BN/GN 0.50 STOP START NEUTRAL SW SIG N/A
70 K914 BN/WH 0.50 SENSOR GROUND N/A
71 K31 BN 0.75 FUEL PUMP CONTROL N/A
72 T752 DG/OG 0.75 STARTER RELAY CONTROL N/A
74 K472 OG/GY 0.75 ELECTRICAL HEATER CONTROL N/A
75 F942 PK/VT 0.50 FUSED IGNITION RUN N/A
76 K806 DB/BN 0.75 STOP START HOOD AJAR SW SIG N/A
79 K859 BN/DB 0.35 5 VOLT SUPPLY N/A
80 D468 GY/WH 0.75 PRIVATE CAN (-) N/A
81 D469 GY 0.75 PRIVATE CAN (+) N/A
82 D595 WH/OG 0.50 LIN BUS N/A
83 D509 WH/OG 0.50 LIN BUS N/A
85 T753 DG/YE 0.50 IGNITION CRANK SENSE N/A
86 K157 BN/OG 0.50 MAF SIGNAL N/A
87 K957 BK/OG 0.50 MAF GROUND N/A
88 K51 BN/WH 0.75 ASD RELAY CONTROL N/A
(1) Pins not listed are not used for this connector
