Module-Powertrain Control C1 (1.4L) Connector End View (D3821A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 284743-1_4-284871-5

Part Description: Not Available

Connector No: D3821A

Option: 1.4L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Powertrain Control C1 Connector End View (1.4L)
GCWD1077699Courtesy of CHRYSLER

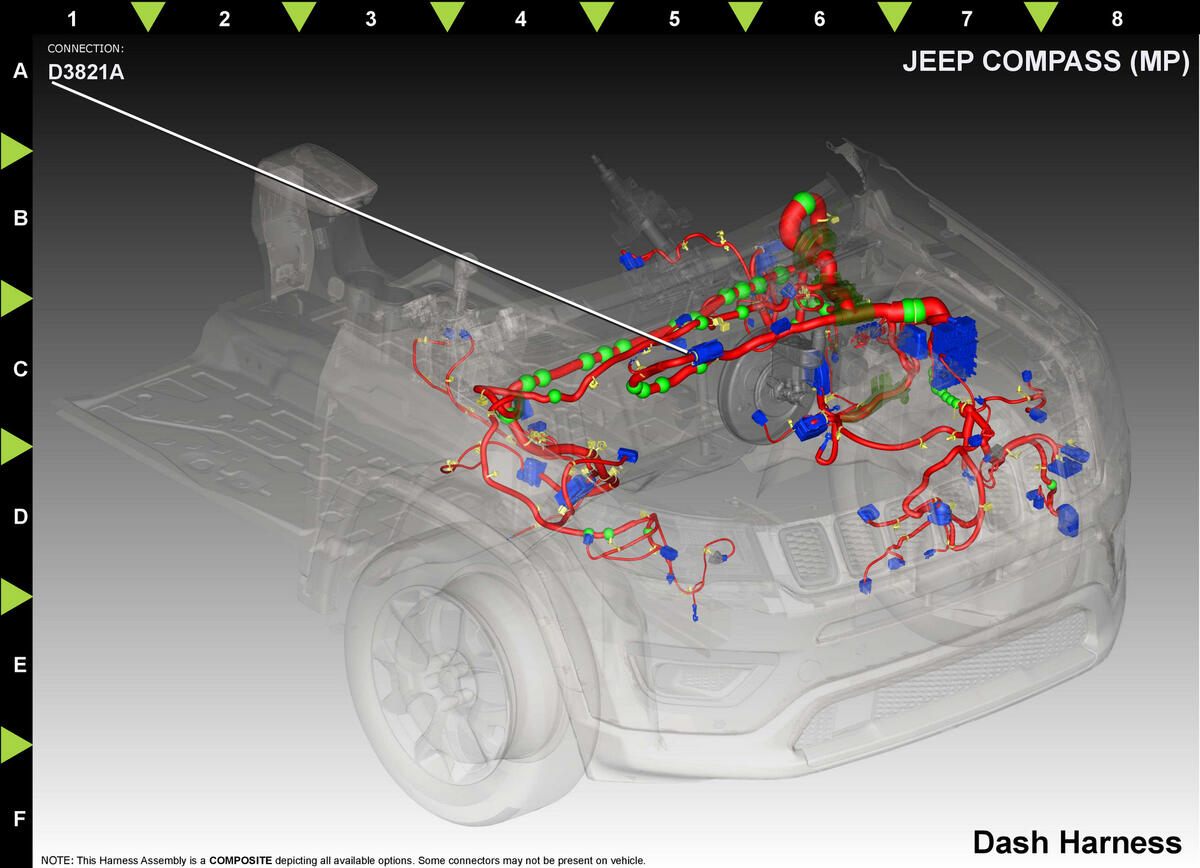

Fig 2: Module-Powertrain Control C1 Component Location (1.4L)
GCWD1288696Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z908 BK/GN 1.5 GROUND N/A
2 Z908 BK/GN 1.5 GROUND N/A
3 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
4 Z908 BK/GN 1.5 GROUND N/A
5 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
6 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
15 K851 DG/PK 0.50 5 VOLT SUPPLY N/A
16 K859 BN/DB 0.35 5 VOLT SUPPLY N/A
17 K164 DG/BK 0.50 SENSOR GROUND N/A
20 K804 BN/GN 0.50 STOP START NEUTRAL SW SIG N/A
24 T22 YE/VT 0.35 BACKUP LAMP SWITCH SIGNAL N/A
28 T753 DG/YE 0.50 IGNITION CRANK SENSE N/A
33 K175 BN/BU 0.75 RAD FAN CONTROL N/A
35 C13 BU/OG 0.75 A/C CLUTCH CONTROL N/A
36 K852 GY/BU 0.50 5 VOLT SUPPLY N/A
37 K854 VT/BN 0.50 5 VOLT SUPPLY N/A
38 C818 BU/OG 0.50 A/C PRESSURE 5 VOLT SUPPLY N/A
39 T918 YE/BK 0.35 NEUTRAL POSITION SENSOR RETURN N/A
42 C918 BK/BU 0.50 A/C PRESSURE RETURN N/A
50 A908 RD 0.75 FUSED B(+) N/A
51 K79 BN/BU 0.75 O2 1/1 HEATER CONTROL N/A
52 K51 BN/WH 0.75 ASD RELAY CONTROL N/A
53 K400 BN/VT 0.50 APP SENSOR GROUND 2 N/A
55 K167 BN/YE 0.50 APP SENSOR GROUND 1 N/A
60 K806 DB/BN 0.75 STOP START HOOD AJAR SW SIG N/A
61 K23 BN/WH 0.50 APP SIGNAL 1 N/A
62 B135 DG/GN 0.35 BRAKE SIGNAL 1 N/A
63 K141 DB/YE 0.75 O2 1/2 SIGNAL N/A
64 K103 BN/BU 0.50 O2 1/1 PUMP CELL CURRENT TRIM N/A
65 K89 BN/GN 0.75 O2 1/1 POSITIVE CURRENT CONTROL N/A
69 D1 BG/WH 0.50 CAN C (+) N/A
70 D2 YE 0.50 CAN C (-) N/A
72 T752 DG/OG 0.75 STARTER RELAY CONTROL N/A
75 K173 BN/VT 0.50 LOW RAD FAN RELAY CONTROL N/A
77 K299 BN/WH 0.75 O2 1/2 HEATER CONTROL N/A
81 K165 DG/WH 0.35 CLUTCH POSITION SIGNAL N/A
82 C18 BU/BN 0.50 A/C PRESSURE SIGNAL N/A
83 K29 WH/BN 0.50 APP SIGNAL 2 N/A
85 K904 DB/DG 0.75 O2 RETURN (DOWNSTREAM) N/A
86 K41 DB/BU 0.75 O2 1/1 SIGNAL N/A
87 K902 BN/DG 0.75 O2 RETURN (UPSTREAM) N/A
88 F942 PK/VT 0.50 FUSED IGNITION RUN N/A
90 D511 WH/BG 0.50 LIN BUS N/A
94 K31 BN 0.75 FUEL PUMP CONTROL N/A
(1) Pins not listed are not used for this connector
