Module-Global TELEMATIC Box C6 (Standard) Connector End View (D335F)

Harness-Family: IP

Color: BLACK

Gender: MALE

Part Number: 33208443

Part Description: Not Available

Connector No: D335F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Global Telematic Box C6 Connector End View (Standard)

Courtesy of CHRYSLER

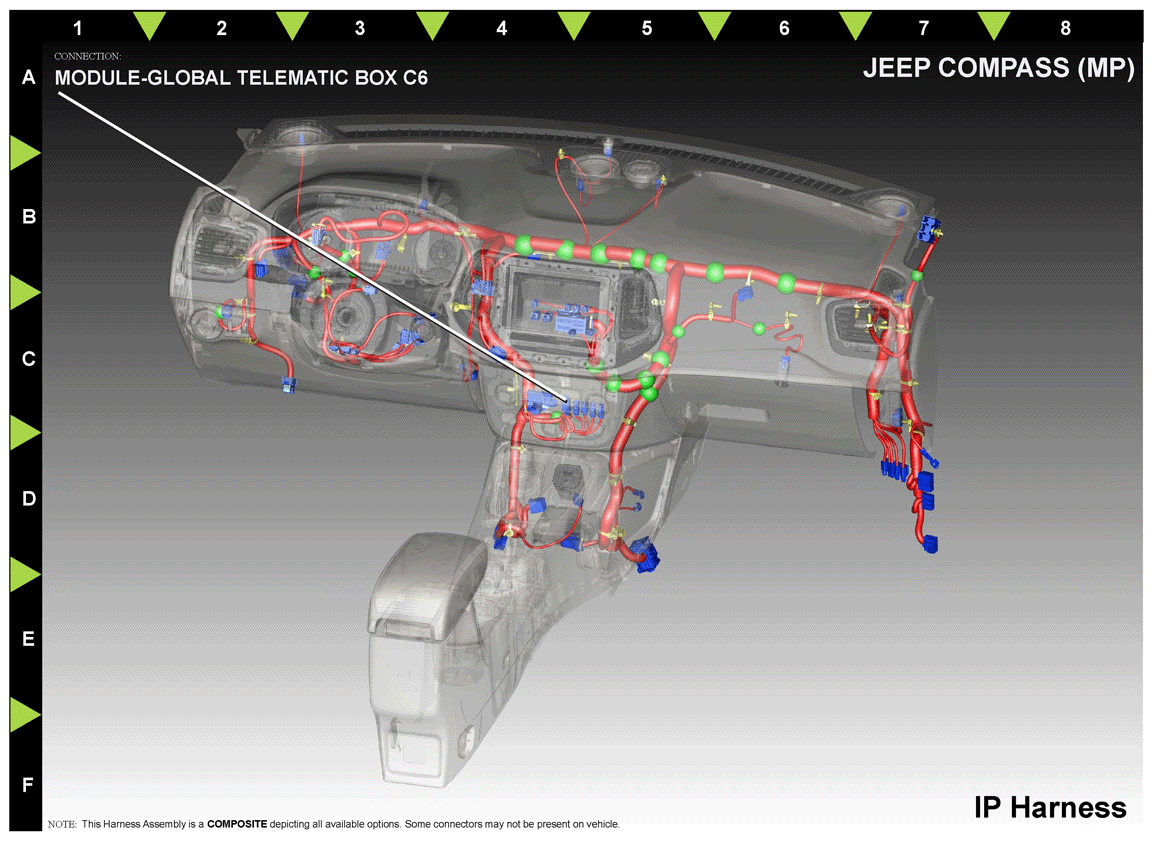

Fig 2: Module-Global Telematic Box C6 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J209

0.14

USB CABLE

N/A

⁽¹⁾	Pins not listed are not used for this connector
