Module-EPS C1 (Standard) Connector End View (D2777A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 15425499_15329074

Part Description: Not Available

Connector No: D2777A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Eps C1 Connector End View (Standard)

Courtesy of CHRYSLER

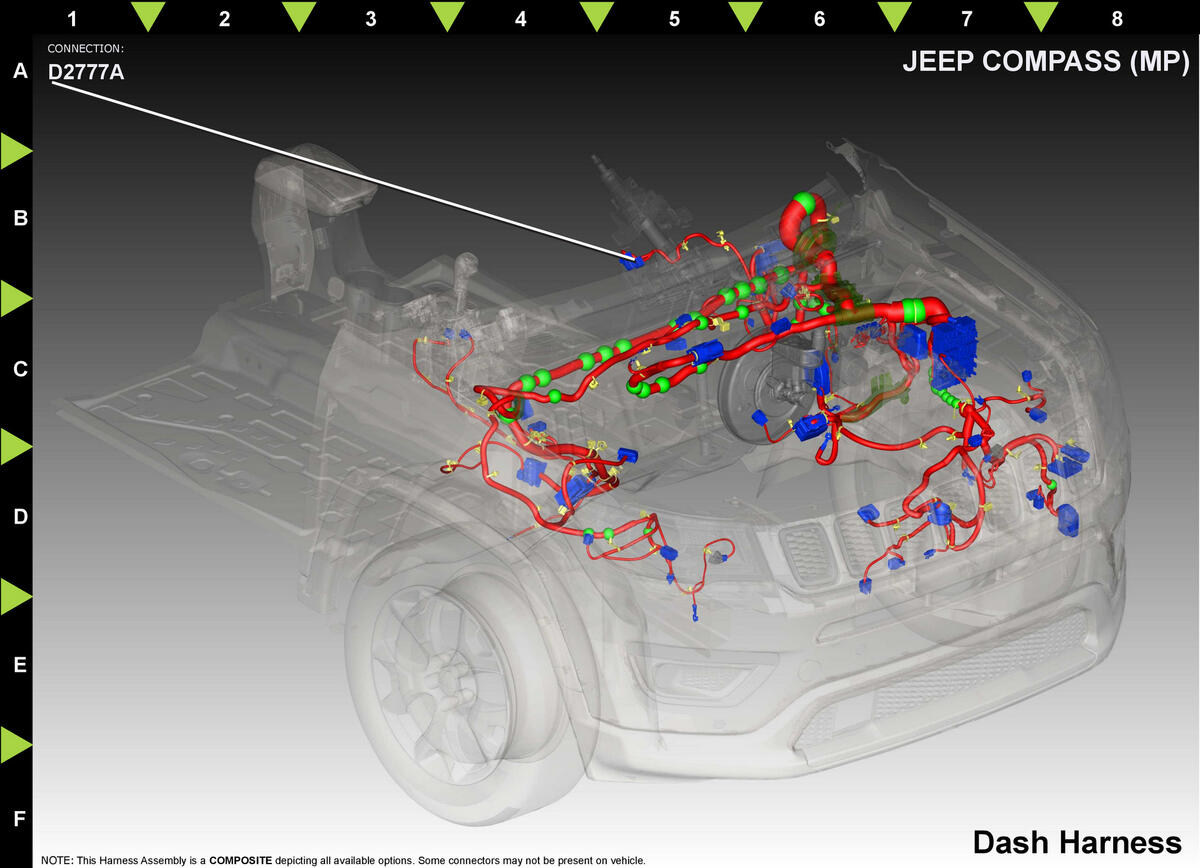

Fig 2: Module-Eps C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F941

PK/WH

0.50

IGNITION RUN/START CONTROL OUTPUT

N/A

D139

YE/BN

0.50

CAN CH (+)

N/A

D138

0.50

CAN CH (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
