Module-Drive Train Control C2 (Standard) Connector End View (D3872B)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: MGT001BFLPSW

Part Description: Not Available

Connector No: D3872B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

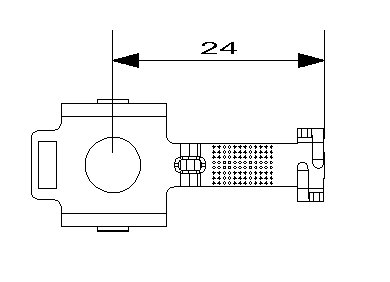

Fig 1: Module-Drive Train Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Drive Train Control C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z913

BK/GN

1.5

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
