Module-Steering Column Control C2 (Standard) Connector End View (D3816B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 33401467_33401469

Part Description: Not Available

Connector No: D3816B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

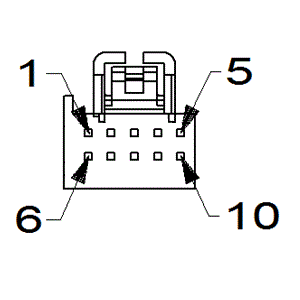

Fig 1: Module-Steering Column Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Steering Column Control C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D402

OG/VT

0.35

LIN BUS CBC 2

N/A

D404

WH/BN

0.35

LIN BUS

N/A

A911

0.50

FUSED B(+)

N/A

DG/VT

0.50

HORN SWITCH SENSE

N/A

Z937

0.50

GROUND

BASE

⁽¹⁾	Pins not listed are not used for this connector
