Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the wheel and tire assembly. Refer to REMOVAL AND INSTALLATION .
  3. Disconnect both the left and right stabilizer bar links from the axle. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
  4. Position a jack under the front axle to support the front suspension.
  5. Remove the front shock absorber lower nut and bolt. Refer to SHOCK ABSORBER, SUSPENSION, REMOVAL AND INSTALLATION .
    GC0181520Courtesy of CHRYSLER GROUP, LLC
  6. Remove the front brake hose bracket bolt and disengage the brake hose bracket from the frame.
    NOTE:

    Do not lower the axle further than the brake hose slack allows.

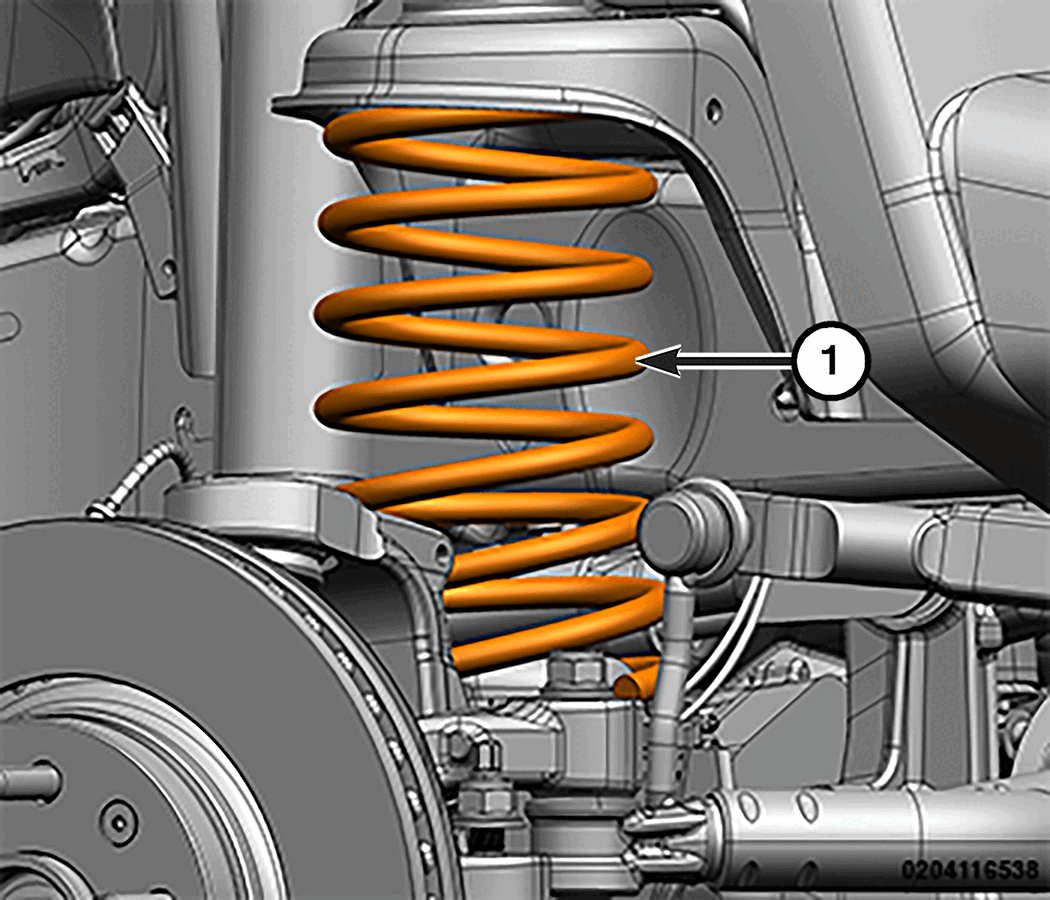

    GC0181784Courtesy of CHRYSLER GROUP, LLC
  7. Lower the axle until the spring is free from the upper mount.
    NOTE:

    Rotation of the spring and prying down slightly on the axle will aid in removal.

  8. Remove the coil spring.
