Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

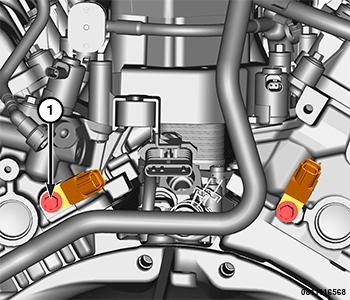

1. Install the ignition coil capacitor and bolt(s) (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

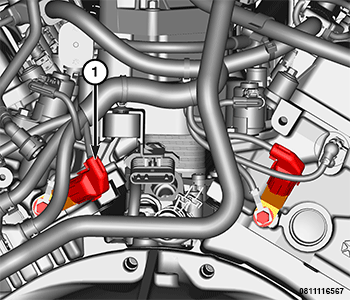

2. Connect the ignition capacitor wire harness connector(s) (1).
3. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
