Module, Occupant Restraint (Orc): Installation

WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING:

To avoid serious or fatal injury, never strike or drop the Occupant Restraint Controller (ORC), as it can damage the impact sensor or affect its calibration. The ORC contains the impact sensor, which enables the system to deploy the SRS components. If an ORC is accidentally dropped during service, the module must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper SRS component deployment.

NOTE:

DO NOT

insert probe tips into the airbag electrical connectors to perform diagnostics of the airbag system.

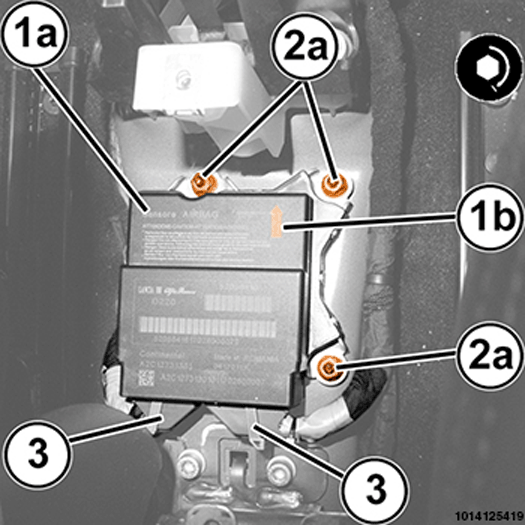

Courtesy of CHRYSLER GROUP, LLC

Install the ORC module (1b) in to position.
Connect the ORC module wire harness connectors (3) and install the nuts (2a) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

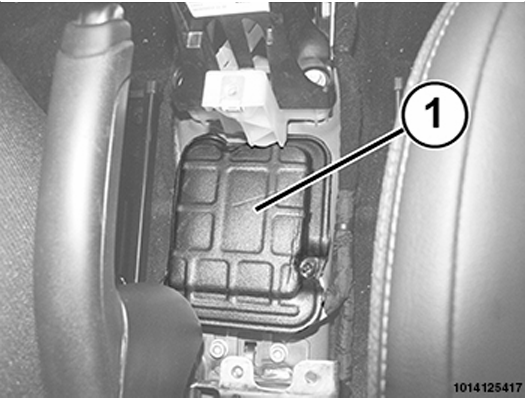

Courtesy of CHRYSLER GROUP, LLC
Install the cover (1) over the ORC module.
Install the console closeout covers onto each side of the center floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
Install the cup holder onto the forward end of the center floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to STANDARD PROCEDURE .

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
