Front, Base - NAFTA

GC0190210Courtesy of CHRYSLER GROUP, LLC

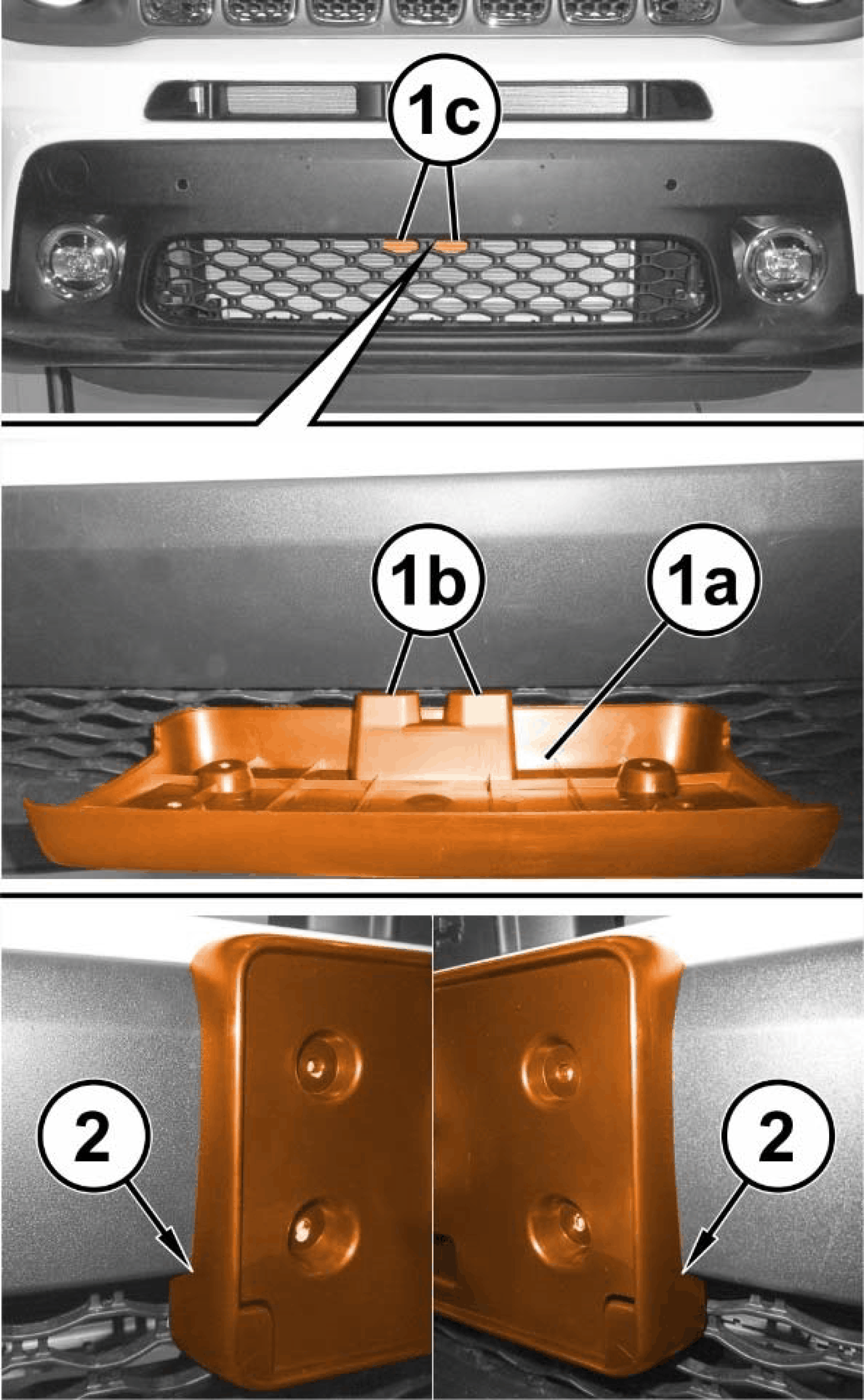

  1. Place the license plate holder (1a) with the centering insert (1b) in the bumper, centering it with the reference (1c) on the bumper.
  2. Lift the license plate holder to align the side profiles (2).
    GC0188719Courtesy of CHRYSLER GROUP, LLC

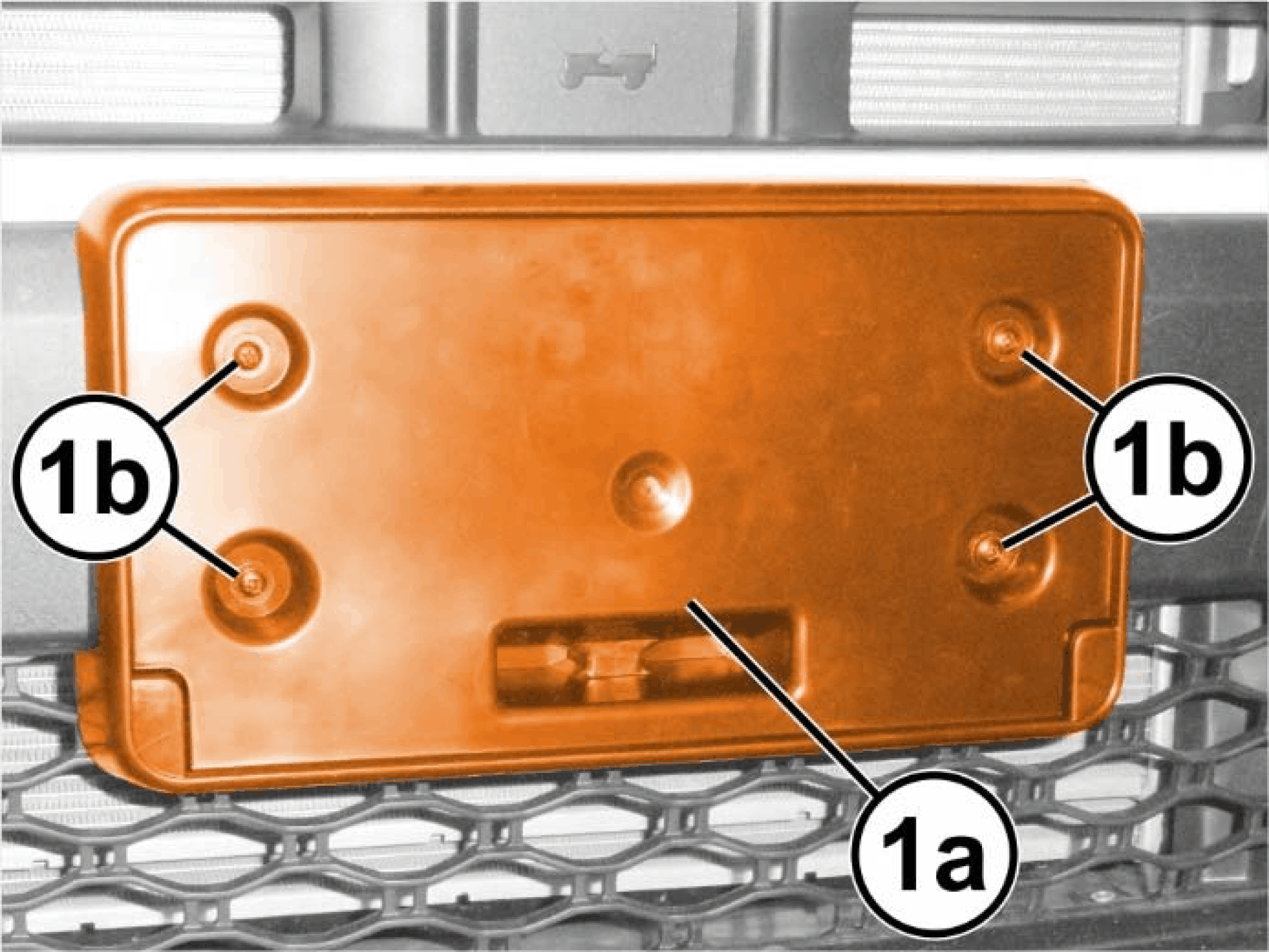

  3. Support the plate holder (1a) and tighten the mounting screws (1b) provided.
  4. Install the front license plate.
