Handle, Exterior: Removal

GC0145842Courtesy of CHRYSLER GROUP, LLC
  1. With liftgate unlatched, disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the inside of the liftgate. Refer to PANEL, TRIM, REMOVAL .
    GC0145853Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the electrical connectors (3, 5) at the latch (4).
  4. Disconnect actuator cable (2) from exterior handle.

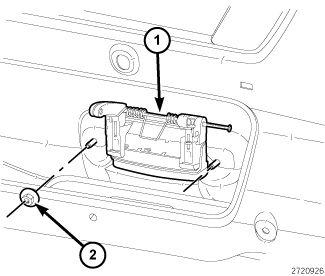

    GC0145861Courtesy of CHRYSLER GROUP, LLC
  5. Reach through the clearance hole in the inside of the liftgate panel on each side of the latch, to access and remove the two nuts (1) that secure the handle to the liftgate.

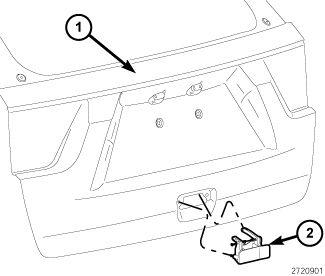

    GC0145860Courtesy of CHRYSLER GROUP, LLC
  6. Remove the handle (2) from the liftgate (1).
